SL 10 SMD 104 5 Z SM

Headers, Male Pins Overview

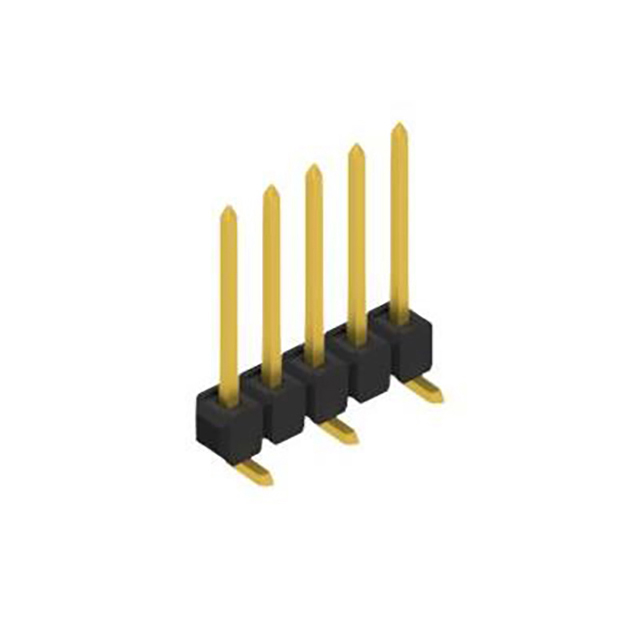

The SL 10 SMD 104 5 Z SM is a board connector featuring five male contacts arranged in a single row with a 2.54 mm pitch. It utilizes surface mount technology for straight installation on printed circuit boards. The component incorporates tin-plated terminals to ensure reliable electrical connections. Designed for compact electronic assemblies, it supports standard reflow soldering processes and operates within a temperature range of -40°C to +163°C.

Headers, Male Pins Feature Summary

• Surface mount terminal configuration for automated assembly integration
• Male contact design ensuring secure mating interface stability
• Tin-plated termination finish providing corrosion resistance
• Straight orientation optimized for low-profile board-to-board applications

Headers, Male Pins Applications

• Compact consumer electronics interconnects
• Industrial control module signal routing
• Telecommunications equipment internal wiring
• Automotive sensor interface connections

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm plating specifications and packaging options. Ensure compatibility with pick-and-place equipment if utilizing tape-and-reel configurations. Cross-reference the contact count and pitch requirements with the target PCB footprint to prevent mechanical misalignment during assembly.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row male header is required for surface-mounted applications. Confirm that the tin-plated finish meets the environmental and conductivity requirements of the target system. Evaluate the thermal tolerance limits against the intended operating environment to ensure long-term reliability under varying temperature conditions.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 10 SMD series, which focuses on precision surface-mount headers. The series offers various contact counts and plating options to suit different density and durability needs. The SL 10 SMD 104 variant specifically addresses space-constrained designs requiring robust connectivity.

Headers, Male Pins Replacement Considerations

Direct substitutes are not explicitly confirmed in public documentation. Verify pinout compatibility and mechanical dimensions before considering alternative manufacturers. Check for equivalent pitch and mounting style requirements to ensure functional interchangeability.
