SL 11 SMD 062 12 Z

Headers, Male Pins Overview

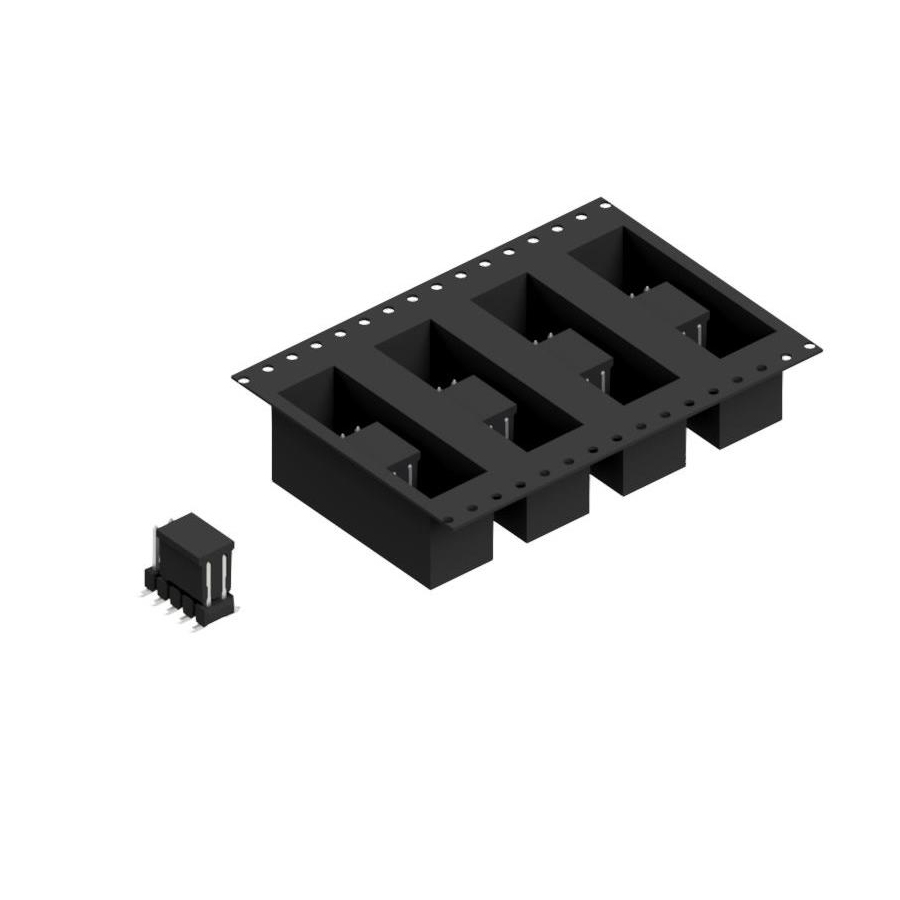

The SL 11 SMD 062 12 Z is a surface-mount pin header manufactured by Fischer Elektronik. It features a 2x6 contact configuration with a 2.54 mm pitch. The connector utilizes tin-plated CuSn alloy contacts and includes a nickel underplating of at least 0.2 µm. Designed for board-to-board or wire-to-board applications, it supports a nominal current of 3 A and offers low volume resistance.

Headers, Male Pins Feature Summary

• Surface-mount design for automated assembly
• Tin-plated copper alloy contacts for corrosion resistance
• Standard 2.54 mm row and column spacing

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• Compact electronic device assemblies

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm contact plating and reel packaging details. Ensure compatibility with standard SMD reflow profiles. Confirm that the 12-position variant matches the required circuit density. Check datasheet specifications for operating temperature ranges before integration.

Headers, Male Pins Selection Notes

Select this component when a low-profile, two-row surface-mount header is required. The 2.54 mm pitch ensures compatibility with standard PCB footprints. Tin plating provides a cost-effective solution for general-purpose applications requiring reliable conductivity.

Headers, Male Pins Part Context

This part belongs to the SL 11 SMD series, which comprises various surface-mount pin headers. The series offers multiple contact counts and configurations. The 'Z' suffix typically indicates tin plating in Fischer Elektronik nomenclature. This specific model represents a 12-contact variant within the product family.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik SL 11 SMD variants with matching 2x6 layouts. Verify mechanical dimensions and electrical ratings against original specifications. Cross-reference compatible connectors from other manufacturers only if footprint and pitch match exactly.
