SL 15 SMD 107 16 Z P

Headers, Male Pins Overview

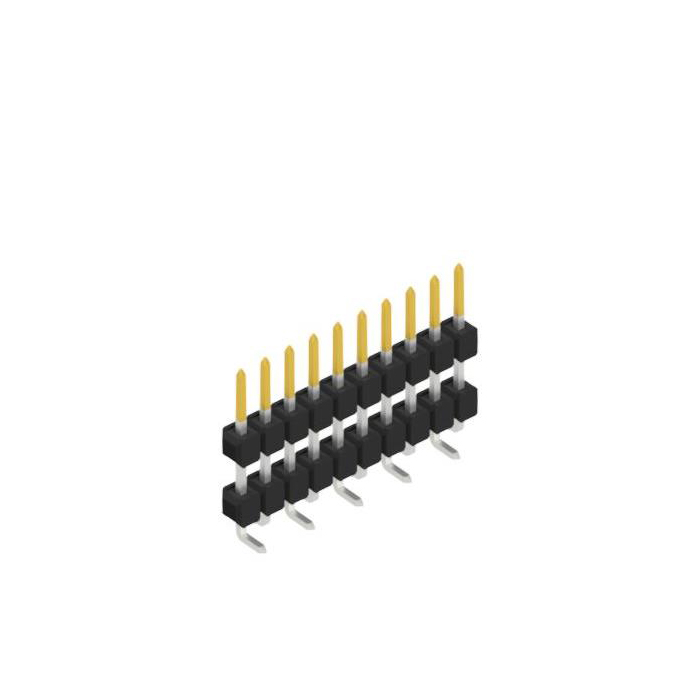

The SL 15 SMD 107 16 Z P is a surface mount connector header manufactured by Fischer Elektronik. It features 16 positions with a 0.100 inch (2.54 mm) pitch. The unit utilizes straight end pins for positioning and includes an insulating body made of PA 4.6 GF material rated UL 94 V-0. Electrical specifications include a test voltage of 2000 V and an operating temperature range from -40°C to +163°C, with soldering resistance up to 260°C for 10 seconds. Contact plating consists of nickel plus gold or nickel plus tin.

Headers, Male Pins Feature Summary

• Surface mount design with straight end pins for precise board positioning
• Insulating body constructed from PA 4.6 GF with UL 94 V-0 flammability rating
• High thermal stability supporting soldering at 260°C for 10 seconds

Headers, Male Pins Applications

• Board-to-board interconnection systems
• Electronic equipment requiring surface mount headers
• Industrial control modules

Headers, Male Pins Procurement Notes

Verify the specific contact plating configuration, as the product line offers variations such as Ni+Au or Ni+Sn. Confirm that the 16-position variant matches the required circuit density. Ensure compatibility with standard reflow soldering profiles given the 260°C/10s limit. Cross-reference the exact suffix against official Fischer Elektronik documentation to confirm pin count and insulation material specifications before ordering.

Headers, Male Pins Selection Notes

Select this component when a 16-position surface mount header is required for high-density applications. The 2.54 mm pitch ensures compatibility with standard through-hole and surface mount assembly processes. Consider the PA 4.6 GF material for environments demanding robust thermal resistance and flame retardancy. Verify that the straight pin orientation aligns with the mechanical layout constraints of the target printed circuit board design.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 15 SMD series, which provides various position counts including 13, 16, and 19 options. The series shares common design characteristics such as the 2.54 mm pitch and surface mount construction. Variations within the series primarily differ in the number of contacts and specific plating options, allowing engineers to choose the appropriate density while maintaining consistent mechanical and electrical standards across the assembly.

Headers, Male Pins Replacement Considerations

Direct substitutes are not explicitly confirmed in public data. Engineers should verify dimensional compatibility and electrical ratings when considering alternative manufacturers. Ensure any replacement maintains the 2.54 mm pitch and surface mount form factor to fit existing PCB footprints without redesign.
