SL 16 SMD 157 50 S P

Headers, Male Pins Overview

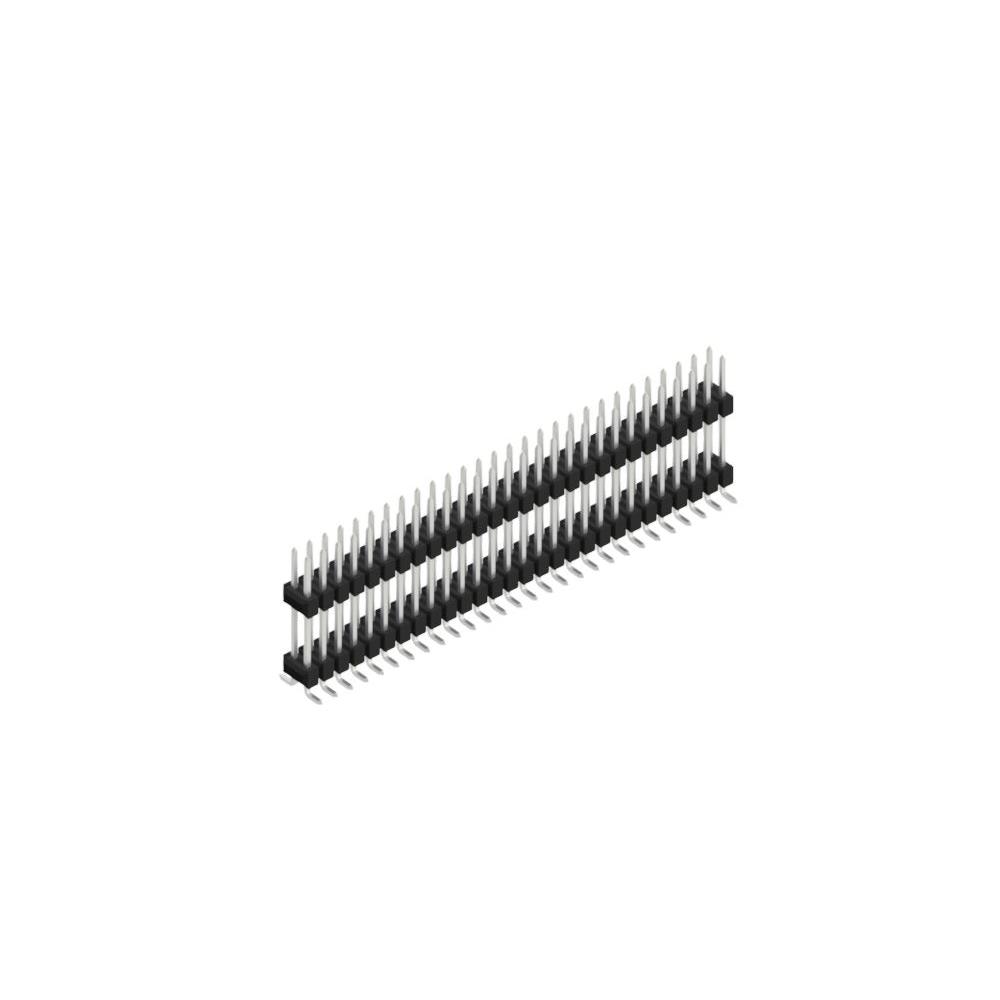

The SL 16 SMD 157 50 S P is a surface mount connector header manufactured by Fischer Elektronik. It features a 2-row configuration with 50 positions, providing a total of 50 contacts. The pitch spacing is 2.54 mm (0.100 inches), and the row spacing is 2.00 mm. The contacts are constructed from CuSn alloy with gold plating. The component is designed for board-to-board and wire-to-board applications, utilizing straight end pins for positioning.

Headers, Male Pins Feature Summary

• Surface mount design with straight end pins for precise positioning
• Dual-row contact arrangement for compact interconnection needs
• Gold-plated copper alloy contacts ensuring reliable conductivity

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• Compact electronic assemblies requiring surface mount technology

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm contact count and plating specifications. Ensure compatibility with the target PCB footprint and reflow soldering profiles. Confirm that the 2.54 mm pitch aligns with mating connector requirements. Check for any customer-specific insulator length modifications if applicable.

Headers, Male Pins Selection Notes

Select this component when a 50-position, 2-row surface mount header is required. The 2.54 mm pitch suits standard digital and analog signal routing. Gold plating offers superior corrosion resistance compared to tin variants. Consider the physical dimensions and row spacing constraints within the assembly layout.

Headers, Male Pins Part Context

This part belongs to the SL 16 SMD series of connector headers from Fischer Elektronik. The series offers various contact counts while maintaining consistent 2.54 mm pitch and surface mount characteristics. Variants differ primarily in the number of positions and optional plating or insulator configurations.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2-row, 50-position, 2.54 mm pitch surface mount form factor. Verify identical row spacing and pin alignment. Cross-reference mechanical dimensions to ensure fit within the designated PCB area.
