SL 16 SMD 207 26 S P

Headers, Male Pins Overview

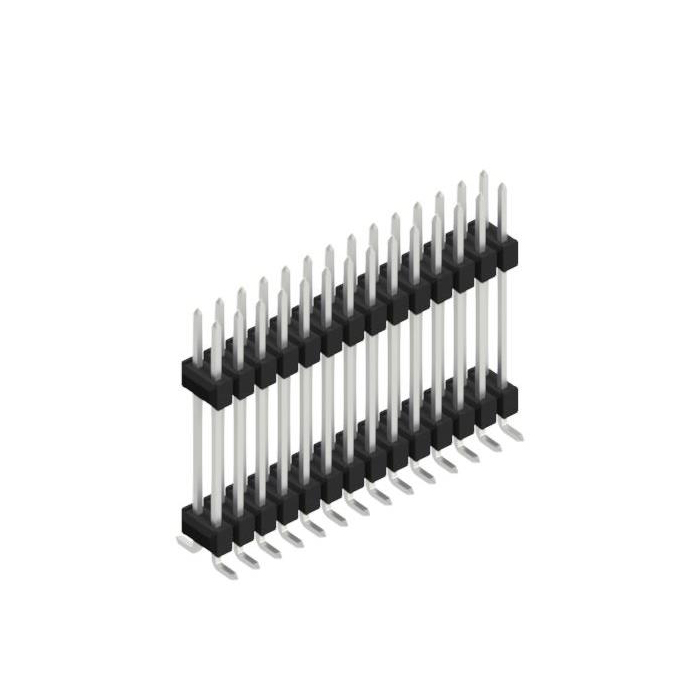

The Fischer Elektronik SL 16 SMD 207 26 S P is a male header connector designed for surface mount technology applications. It features a 26-position configuration with a 2.54 mm (0.100 inch) pitch, suitable for reliable interconnections in compact electronic assemblies. The contacts are constructed from CuSn alloy and feature selective gold plating to ensure durability and low contact resistance. The component operates within a temperature range of -40°C to +163°C and withstands reflow soldering conditions at 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Surface mount male header design for PCB integration
• Selective gold-plated CuSn alloy contacts for corrosion resistance
• Standard 2.54 mm pitch for universal compatibility

Headers, Male Pins Applications

• Interconnection of stacked printed circuit boards
• Compact electronic assembly signal routing
• Industrial control system board-to-board connections

Headers, Male Pins Procurement Notes

Verify the specific suffix 'P' against official datasheets to confirm plating specifications, as variations may exist between 'S' and 'P' designations. Ensure the selected variant matches the required contact material and surface finish for the intended application environment. Cross-reference the 26-position count with mechanical drawings to confirm pin alignment and housing dimensions before procurement.

Headers, Male Pins Selection Notes

Select this component when surface mount assembly is required for high-density interconnections. The 2.54 mm pitch ensures compatibility with standard through-hole mating connectors. Verify that the operating temperature range meets environmental requirements and that the gold plating thickness satisfies long-term reliability standards for the specific usage scenario.

Headers, Male Pins Part Context

This part belongs to the SL 16 SMD series by Fischer Elektronik, which specializes in precision-engineered electronic components for reliable interconnections. The series offers various position counts and insulator configurations to suit different assembly lengths and spacing requirements. It is designed for use in applications demanding stable electrical performance in compact form factors.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik SL 16 SMD variants with matching 26 positions and 2.54 mm pitch, such as SL 16 SMD 207 26 G P or SL 16 SMD 207 26 S, provided contact surface finishes align with application needs. Ensure mechanical footprint compatibility when considering alternative manufacturers.
