SL 5 315 6 Z

Headers, Male Pins Overview

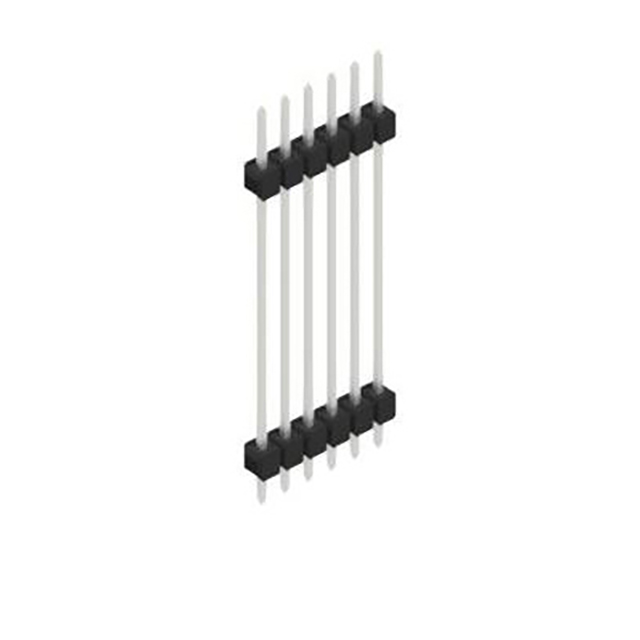

The SL 5 315 6 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 0.635 mm (0.025 inch) pitch and accommodates 6 positions for board-to-board or wire-to-board interconnections. The component utilizes through-hole mounting technology with straight pins. Contact surfaces are selectively gold-plated up to a maximum pin length of 33 mm, ensuring reliable conductivity in stacked PCB applications. The housing material provides structural integrity for precision engineering.

Headers, Male Pins Feature Summary

• Selective gold plating on contact pins up to 33 mm length
• Precision-engineered design for stacked PCB interconnections
• Single-row configuration with 0.635 mm pitch spacing

Headers, Male Pins Applications

• Stacked printed circuit board assemblies
• High-density electronic interconnections
• Precision engineering modules requiring reliable signal transmission

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'Z' against the manufacturer's current datasheet to confirm exact plating specifications and pin length capabilities. Ensure compatibility with mating connectors regarding pitch and row count. Cross-reference the part number with official Fischer Elektronik documentation to validate availability and technical parameters before procurement.

Headers, Male Pins Selection Notes

Select this component when a 0.635 mm pitch is required for compact electronic designs. Choose the SL 5 315 6 Z for applications demanding selective gold plating on pins up to 33 mm to ensure corrosion resistance and low contact resistance. Confirm that the six-position requirement aligns with the circuit design needs.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL series, which specializes in high-precision connectors for complex electronic assemblies. The series offers various configurations tailored for different stacking heights and contact requirements. Fischer Elektronik focuses on manufacturing components with guaranteed layer thicknesses for consistent performance in industrial and specialized electronic environments.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify mechanical fit and electrical characteristics if considering alternative manufacturers.
