Headers, Male Pins Overview

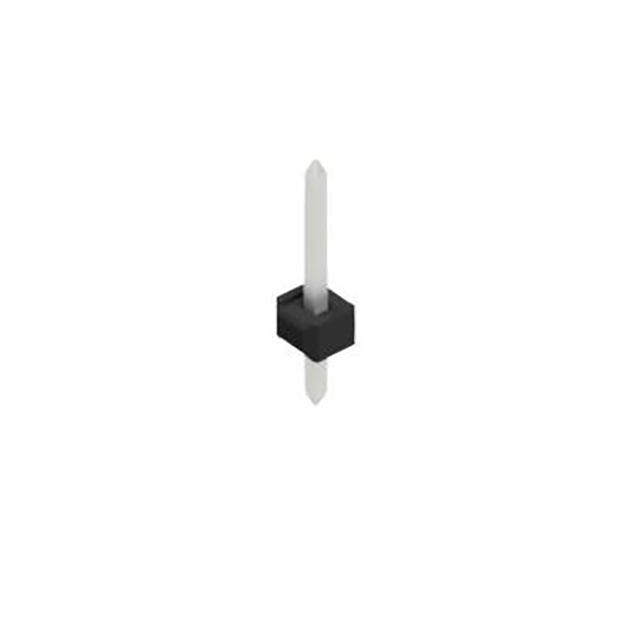

The SL LP 1 112 1 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 0.635 mm (0.025 inch) square contact shape with a 2.54 mm (0.100 inch) pitch. The component is designed for through-hole mounting and contains one position. Technical drawings indicate an overall length of 11.2 mm, a width of 3 mm, and a height of 6.5 mm. The operating temperature range is specified from -40°C to +163°C.

Headers, Male Pins Feature Summary

• Low profile straight configuration for compact board integration
• Precision-engineered square contacts ensuring reliable mating
• Thermal resistance up to 163°C for high-temperature processing

Headers, Male Pins Applications

• General electronic interconnects
• Industrial control systems
• Telecommunications equipment

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' against the manufacturer's datasheet to confirm plating specifications, as suffixes often denote critical material variations such as gold or tin finishes. Ensure the single-position requirement matches the design before ordering. Cross-reference the thermal rating with your assembly process limits to prevent insulation damage during soldering.

Headers, Male Pins Selection Notes

Select this part when a minimal footprint is required due to its single-position count and low-profile design. The 2.54 mm pitch ensures compatibility with standard PCB layouts. Consider the 163°C thermal limit if reflow soldering is used. Verify that the square contact geometry meets the mechanical retention requirements of the mating socket.

Headers, Male Pins Part Context

This component belongs to the SL LP series, which is characterized by low-profile headers. The 'SL LP 1 112' base model indicates the series and contact spacing, while the final digit specifies the number of positions. This specific variant is the single-position version of the 112 series, offering a minimal connection point within the family.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users must consult Fischer Elektronik directly for cross-referencing compatible alternatives.
