SL LP 2 082 70 S

Headers, Male Pins Overview

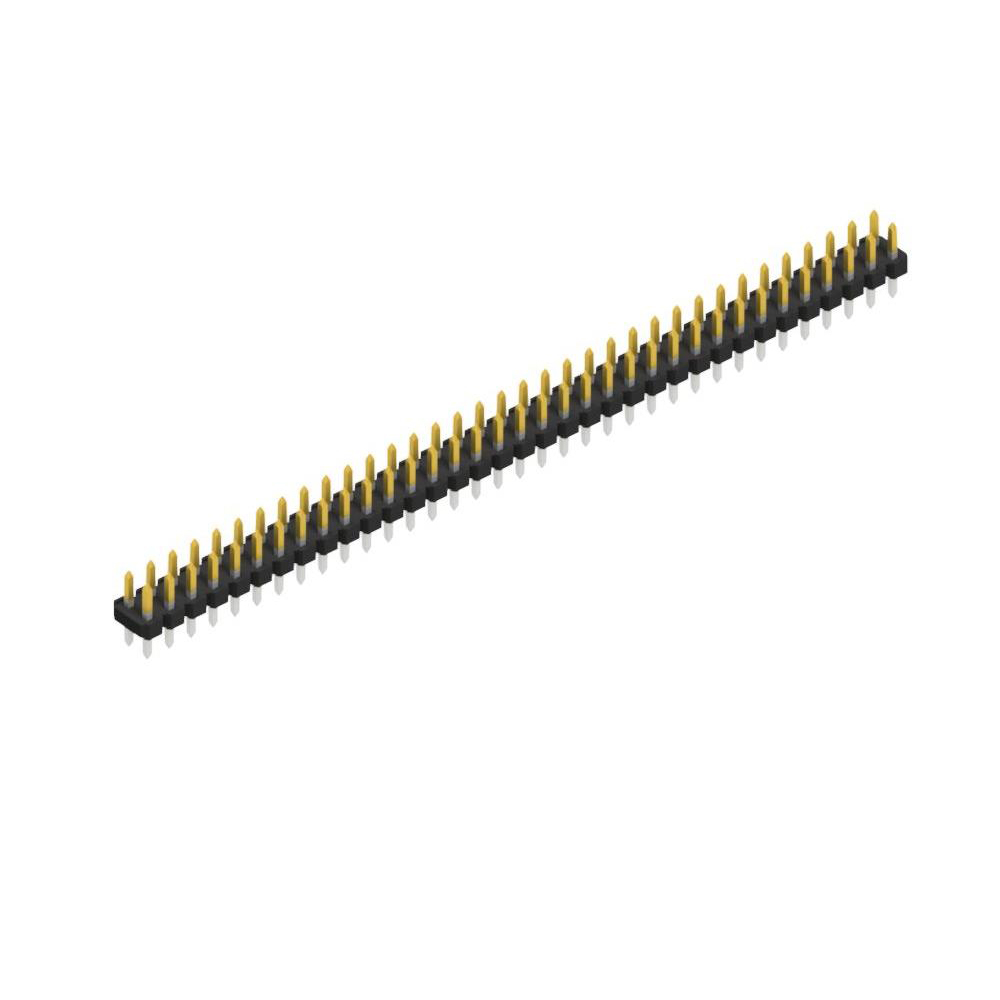

The SL LP 2 082 70 S is a low-profile, straight male header from Fischer Elektronik. It features a 2.54 mm pitch and utilizes CuSn-alloy contacts with selective gold plating for mating surfaces (157.5 µin / 4.00 µm) and tin plating for posts. Designed for through-hole technology (THT), the component supports reflow soldering processes. The housing material meets UL 94 V-0 flammability standards and exhibits specific insulation resistance exceeding 10^7 Ω·m. Thermal stability allows exposure to 260°C for 10 seconds during assembly.

Headers, Male Pins Feature Summary

• Low-profile straight male header design optimized for compact PCB layouts
• Selective gold plating on contact areas ensures reliable electrical connectivity
• Compatible with standard reflow soldering profiles for automated assembly

Headers, Male Pins Applications

• General purpose electronic circuit interconnections
• Board-to-board connection systems requiring low profile
• Industrial control module signal routing

Headers, Male Pins Procurement Notes

Verify the complete part number including suffixes against official Fischer Elektronik documentation to ensure correct contact finish and pin count specifications. Confirm that the required through-hole mounting method aligns with your manufacturing process capabilities. Request updated datasheets directly from authorized distributors or the manufacturer to validate current production status and compliance certifications before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when space constraints necessitate a low-profile connector solution. Ensure the application environment does not exceed the thermal limits defined in the datasheet. Verify that the copper-tin alloy contact material provides sufficient durability for the intended mating cycle requirements. Consider the straight orientation relative to the PCB plane during mechanical layout planning.

Headers, Male Pins Part Context

This model belongs to the SL LP 2 082 series of male headers manufactured by Fischer Elektronik. The series specializes in low-profile connectors with a 2.54 mm pitch. These components are engineered for surface-mount and through-hole applications where minimal height is critical. The product line emphasizes robust contact materials and standardized dimensions for consistent performance across various electronic assemblies.

Headers, Male Pins Replacement Considerations

Consult official cross-reference lists for direct substitutes. Generic equivalents may differ in contact finish thickness or thermal tolerance. Verify dimensional compatibility before substitution.
