SL36B

Single Diodes Overview

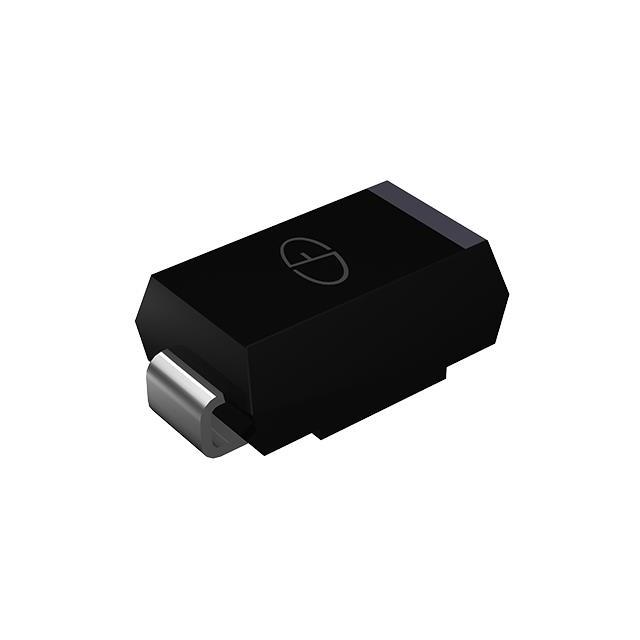

The SL36B is a surface mount Schottky barrier rectifier manufactured by Good-Ark Semiconductor. It features a maximum average forward rectified current of 3A and a maximum repetitive peak reverse voltage of 60V. The device utilizes the DO-214AA (SMB) package. Electrical characteristics include a typical junction capacitance of 220pF at 4.0V and 1MHz, with a maximum DC blocking voltage of 60V.

Single Diodes Feature Summary

• Schottky barrier construction for low leakage current
• Low forward voltage drop performance
• Halogen-free composition compliant with IEC 61249-2-21
• High temperature soldering capability up to 260°C

Single Diodes Applications

• Low voltage high frequency inverters
• Free-wheeling circuits
• Polarity protection applications

Single Diodes Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm electrical ratings and package type. Ensure compatibility with RoHS3 standards and moisture sensitivity level 1 requirements. Confirm tape and reel packaging specifications match design needs.

Single Diodes Selection Notes

Select based on required reverse voltage and forward current ratings. Consider thermal resistance values for heat dissipation in the target application. Verify package dimensions for PCB layout compatibility.

Single Diodes Part Context

This component belongs to the SL32B through SL310B series of surface mount Schottky rectifiers. The series offers various reverse voltage options ranging from 20V to 100V while maintaining a consistent 3A forward current rating across all variants.

Single Diodes Replacement Considerations

Compatible substitutes within the same series include SL35B and SL37B, provided their respective reverse voltage ratings align with circuit requirements.
