SLM N 1 117 13 G

Headers, Male Pins Overview

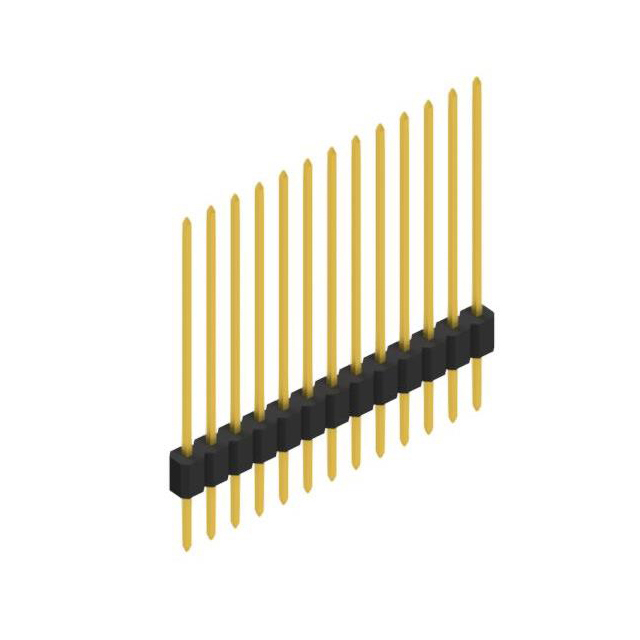

The SLM N 1 117 13 G is a male pin header manufactured by Fischer Elektronik. It features a single row with 13 contacts and a pitch of 1.27 mm (0.050 inches). Designed for through-hole mounting, this straight connector supports a voltage rating of 250 V and a current capacity of 3 A. The contacts are tin-plated to ensure reliable electrical connections in board-to-board and wire-to-board applications.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard header applications
• Through-hole straight terminal style for secure PCB mounting
• Tin-plated contacts for corrosion resistance and conductivity

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic equipment assembly

Headers, Male Pins Procurement Notes

Verify the complete part number including suffixes such as 'G' or 'Z' to ensure correct contact plating and availability. Confirm that the required 1.27 mm pitch and 13-position count match the design specifications. Check datasheets for mechanical dimensions and thermal handling requirements before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a single-row, 13-position male header is required for through-hole implementation. Ensure the application environment does not exceed the 250 V voltage or 3 A current ratings. Consider the straight orientation and 1.27 mm spacing constraints relative to adjacent components on the target printed circuit board layout.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL series of pin headers. The series offers various contact counts and configurations for different electronic assembly needs. The specific model indicates a 13-contact variant within the broader family of connectors designed for reliable signal and power transmission in industrial and consumer electronics.

Headers, Male Pins Replacement Considerations

Compatible alternatives include other 13-position, 1.27 mm pitch male headers from Fischer Elektronik, such as the SLM N 1 117 13 Z. Verify that substitute parts maintain identical mechanical dimensions, electrical ratings, and mounting styles to ensure direct interchangeability without redesigning the PCB footprint.
