SLV W 11 105 14 G

Headers, Male Pins Overview

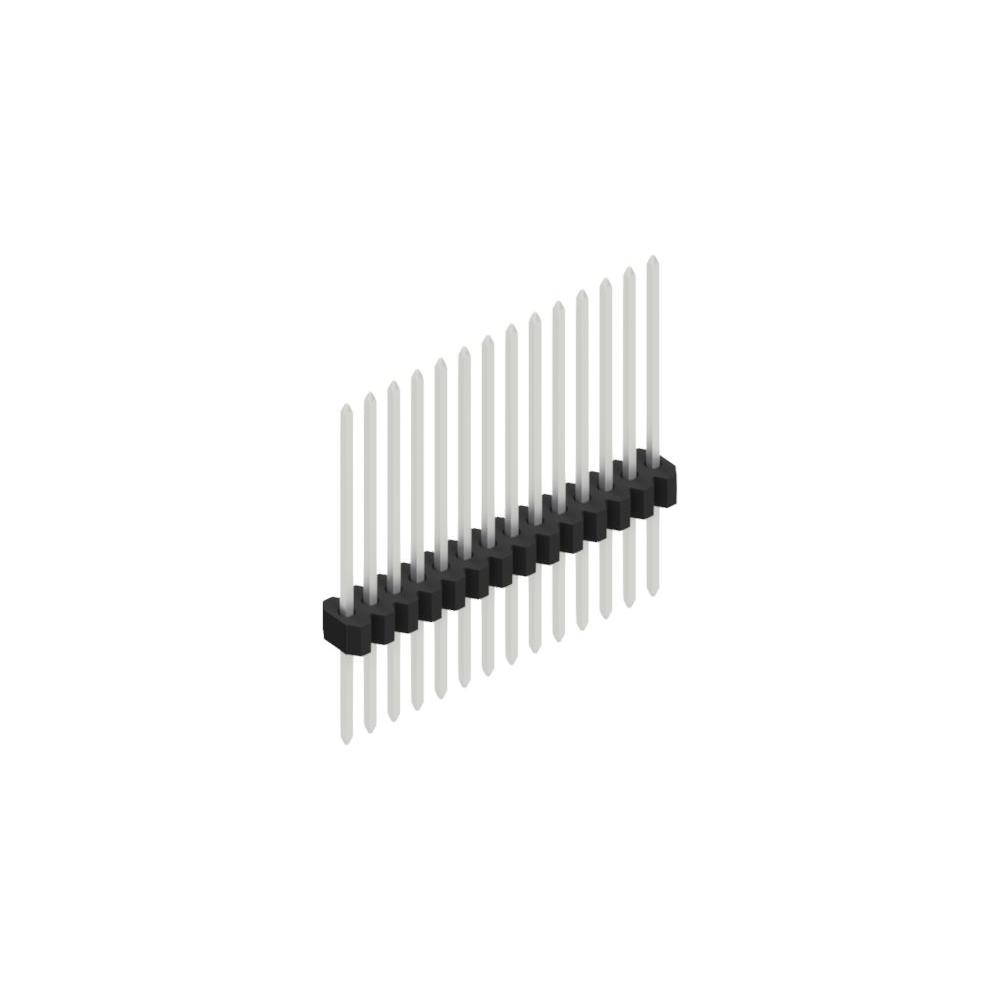

The SLV W 11 105 14 G is a male header connector manufactured by Fischer Elektronik. It features a 14-position configuration with a 1.27 mm (0.050 inch) pitch, designed for through-hole PCB mounting. The contacts are constructed from CuZn alloy with tin plating, ensuring standard conductivity and corrosion resistance. Electrical ratings include a nominal current of 1.5 A and a nominal voltage of 125 V AC, with a test voltage capability of 300 V. The insulating body is made of PA 4.6 GF material, offering a volume resistance of ≤5 mΩ.

Headers, Male Pins Feature Summary

• Precision-engineered male header suitable for mating with female headers such as the BLM series
• Tin-plated CuZn alloy contacts provide reliable electrical connectivity
• PA 4.6 GF insulating body ensures structural integrity and insulation
• Through-hole mounting style facilitates secure PCB integration

Headers, Male Pins Applications

• Industrial electronic manufacturing assemblies
• PCB interconnects requiring 1.27 mm pitch spacing
• Mating connections with compatible female header systems

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' against the official Fischer Elektronik datasheet to confirm exact contact plating and packaging specifications. Ensure the 14-position count matches the design requirement. Cross-reference the PA 4.6 GF material grade for thermal and chemical compatibility with the intended assembly environment before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a 14-position male header with 1.27 mm pitch is required for through-hole applications. The 1.5 A current rating and 125 V AC voltage limit define its operational boundaries. Consider the PA 4.6 GF body material for environmental resistance. Confirm mechanical compatibility with the designated female header counterpart, such as the BLM series, to ensure proper mating engagement.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL series of PCB connectors. The SLV W designation indicates a specific male header variant optimized for industrial use. The series emphasizes precision engineering for demanding connectivity tasks. The 11 105 code typically refers to the pitch and row configuration within the product family hierarchy.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify mechanical dimensions and electrical ratings against alternative suppliers if sourcing changes are necessary.
