SLV W 4 080 42 Z

Headers, Male Pins Overview

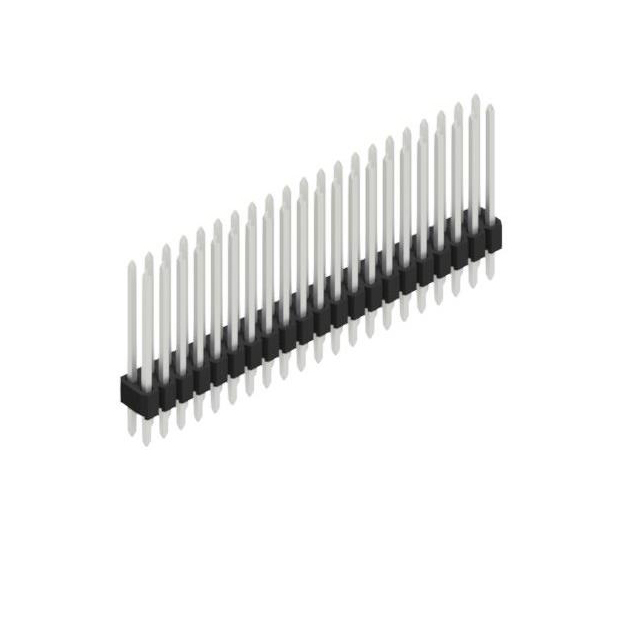

The SLV W 4 080 42 Z is a male pin header connector manufactured by Fischer Elektronik. It features a through-hole mounting style with 42 positions arranged in two rows. The connector utilizes a grid spacing of 1.27 x 2.54 mm, providing precise alignment for mating interfaces. The contacts are constructed from a CuZn-alloy to ensure reliable electrical conductivity and mechanical durability. This component is designed for secure PCB integration in electronic assemblies requiring robust connectivity.

Headers, Male Pins Feature Summary

• Two-row male pin configuration for dual-line connectivity
• Precision-engineered contact structure using CuZn-alloy material
• Compatible with female header BLM series for standardized mating

Headers, Male Pins Applications

• Industrial control system interconnects
• Electronic assembly signal routing
• PCB-to-PCB or PCB-to-cable connections

Headers, Male Pins Procurement Notes

Verify the specific part number SLV W 4 080 42 Z against official Fischer Elektronik documentation to confirm contact count and pitch specifications. Ensure compatibility with the intended female header BLM series before procurement. Cross-reference datasheet details regarding contact material and mounting type to validate suitability for the target application environment.

Headers, Male Pins Selection Notes

Select this component when a 42-position male header with 1.27 x 2.54 mm grid spacing is required. Confirm that the CuZn-alloy contact material meets the environmental and conductivity requirements of the design. Verify that the through-hole mounting method aligns with the PCB fabrication capabilities and mechanical constraints of the assembly.

Headers, Male Pins Part Context

This model belongs to the SLV W 4 080 series of precision headers from Fischer Elektronik. The series offers various contact counts ranging from 4 to 72 positions while maintaining consistent grid spacing. These connectors are engineered for demanding industrial applications, ensuring reliable performance through robust construction and standardized dimensions.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include models with identical grid spacing and row configuration but different contact counts, such as SLV W 4 080 6 Z or SLV W 4 080 62 Z. Ensure any replacement maintains the 1.27 x 2.54 mm pitch and compatibility with the BLM female header series.
