SLW16S-1C7LF

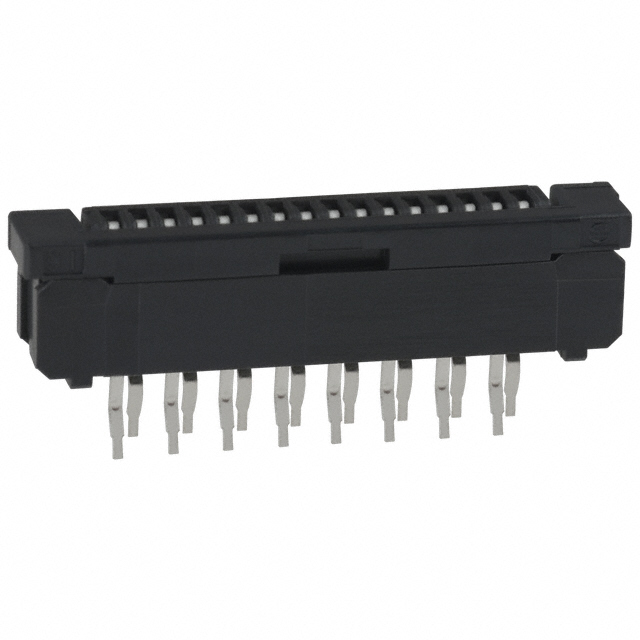

SLW16S-1C7LF is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN FFC FPC VERT 16POS 1MM PCB. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for SLW16S-1C7LF

• Description：CONN FFC FPC VERT 16POS 1MM PCB
• Series：SLW-S
• Mfr：Amphenol ICC (FCI)
• Package：Tray
• Flat Flex Type：FFC, FPC
• Mounting Type：Through Hole
• Connector/Contact Type：Contacts, Vertical - 1 Sided
• Number of Positions：16
• Pitch：0.039" (1.00mm)
• Termination：Kinked Pin
• FFC, FCB Thickness：0.33mm
• Height Above Board：0.217" (5.50mm)
• Locking Feature：Slide Lock
• Cable End Type：-
• Contact Material：Phosphor Bronze
• Contact Finish：Tin
• Housing Material：Polyamide (PA), Nylon, Glass Filled
• Actuator Material：Polyamide (PA), Nylon, Glass Filled
• Features：Zero Insertion Force (ZIF)
• Voltage Rating：100V
• Operating Temperature：-55°C ~ 85°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for SLW16S-1C7LF
