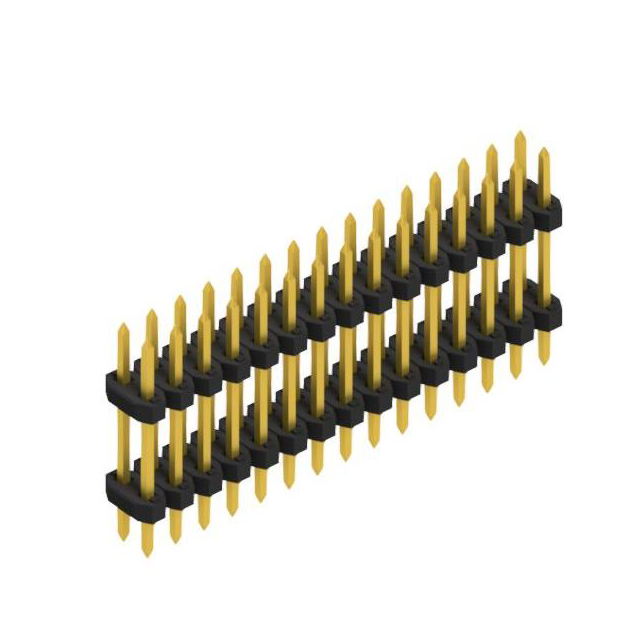

SLY 6 081 30 G

$3.26

Description：TWO ROWS, 0.5 MM, SUITABLE FOR
Series：SLY 6 081
Mfr：Fischer Elektronik
Package：Bulk

SKU:3073a8cedf41 Category: Headers, Male Pins Brand: Fischer Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SLY 6 081 30 G is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Fischer Elektronik. Its product description is TWO ROWS, 0.5 MM, SUITABLE FOR. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for SLY 6 081 30 G

Description：TWO ROWS, 0.5 MM, SUITABLE FOR
Series：SLY 6 081
Mfr：Fischer Elektronik
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：30
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.142" (3.60mm)
Contact Length - Post：0.110" (2.80mm)
Overall Contact Length：0.571" (14.50mm)
Insulation Height：0.059" (1.50mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：157.5µin (4.00µm)
Contact Finish - Post：Tin
Contact Material：Copper Tin
Insulation Material：Polyamide (PA46), Nylon 4/6, Glass Filled
Features：-
Operating Temperature：-40°C ~ 163°C
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：100VDC

Headers, Male Pins datasheet and documents for SLY 6 081 30 G

SLY 6 081 30 G

Headers, Male Pins Overview

The SLY 6 081 30 G is a male pin header connector from the Fischer Elektronik SLY 6 081G series. It features 30 contacts arranged in two rows, designed for through-hole PCB mounting. The connector utilizes bronze contact material and has a 0.5 mm pitch. It is engineered for interconnections of stacked printed circuit boards (PCBs) and is compatible with female headers from the BLY series.

Headers, Male Pins Feature Summary

Two-row male header configuration optimized for stacking PCBs
Constructed with bronze contact material for reliable conductivity
Compatible with corresponding female headers from the BLY series

Headers, Male Pins Applications

Interconnections of stacked PCBs
Compact electronic device assembly
Precision electronic applications requiring high-density connections

Headers, Male Pins Procurement Notes

Verify the specific part number suffix to confirm the exact contact count and row configuration. Ensure compatibility with the intended mating female header series, specifically the BLY series, to guarantee proper mechanical fit and electrical performance. Confirm that the through-hole mounting style aligns with the target PCB design requirements before procurement.

Headers, Male Pins Selection Notes

Select this component when a compact, two-row male header is required for stacking PCBs. The 0.5 mm pitch allows for high-density connections within limited space. The bronze contact material provides durability. Ensure the application does not require surface-mount technology, as this model is designed for through-hole installation.

Headers, Male Pins Part Context

This component belongs to the SLY 6 081G series by Fischer Elektronik. The series specializes in male headers with a 0.5 mm pitch, suitable for female headers in the BLY series. These connectors are designed for precise electronic applications where compact dimensions and reliable interconnection between stacked circuit boards are essential.
