SM6S22A-Q1

SM6S22A-Q1 is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists ANBON SEMICONDUCTOR (INT'L) LIMITED. Its product description is TVS DIODE 22VWM 35.5VC DO218AB. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for SM6S22A-Q1

• Description：TVS DIODE 22VWM 35.5VC DO218AB
• Series：-
• Mfr：ANBON SEMICONDUCTOR (INT'L) LIMITED
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Zener
• Bidirectional Channels：-
• Voltage - Reverse Standoff (Typ)：22V
• Voltage - Breakdown (Min)：24.4V
• Voltage - Clamping (Max) @ Ipp：35.5V
• Current - Peak Pulse (10/1000µs)：130A
• Power - Peak Pulse：4600W (4.6kW)
• Power Line Protection：No
• Applications：-
• Capacitance @ Frequency：-
• Operating Temperature：-55°C ~ 175°C (TJ)
• Mounting Type：Surface Mount

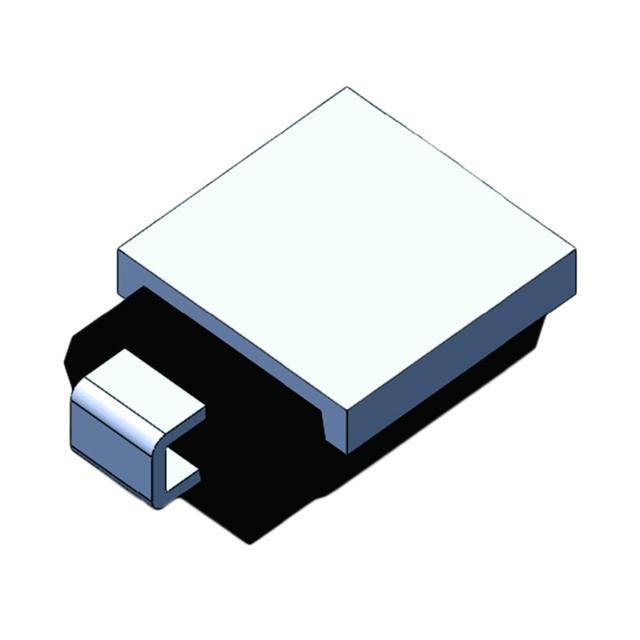

• Package / Case：DO-218AB
• Supplier Device Package：DO-218AB
• Unidirectional Channels：1
• Grade：Automotive
• Qualification：-

Tvs Diodes datasheet and documents for SM6S22A-Q1
