SMAZ24-TP

Single Zener Diodes Overview

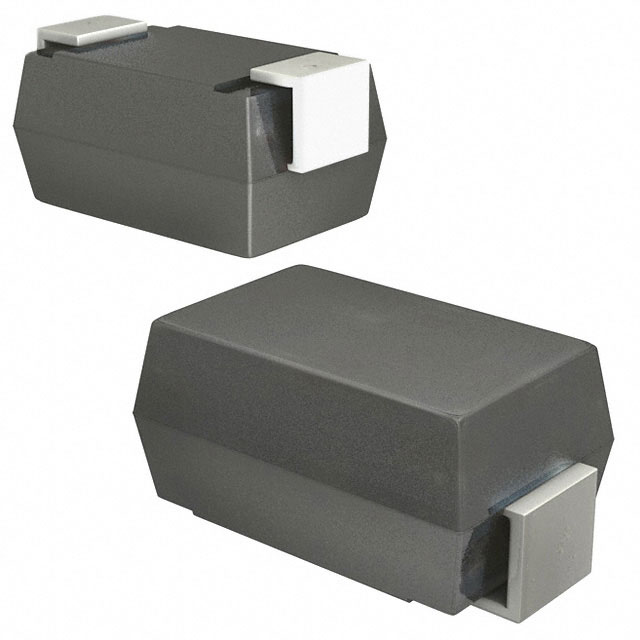

The SMAZ24-TP is a 1 Watt Zener diode manufactured by Micro Commercial Components (MCC) in the SMA (DO-214AC) surface-mount package. It provides a nominal voltage of 24V with a standard tolerance of ±5%. The device operates within a junction temperature range of -65°C to +150°C and features high surge capability suitable for automatic assembly.

Single Zener Diodes Feature Summary

• Halogen-free 'Green' device construction
• Lead-free finish compliant with RoHS standards
• Epoxy material meets UL 94 V-0 flammability rating

Single Zener Diodes Applications

• Voltage regulation circuits
• Surge protection applications
• Automatic assembly processes

Single Zener Diodes Procurement Notes

Verify authenticity through authorized MCC distributors or direct purchase from the manufacturer. Counterfeit parts pose significant risks; unauthorized sources do not provide warranty coverage. Confirm the specific ordering suffix matches the required packing quantity, as the -TP suffix indicates Tape & Reel packaging containing 7,500 pieces per reel.

Single Zener Diodes Selection Notes

Select this component for designs requiring a 24V reference with ±5% tolerance in an SMA footprint. Ensure thermal management accounts for the 30°C/W junction-to-terminal resistance. Verify that the application does not involve life support systems without explicit written approval from Micro Commercial Components Corporation.

Single Zener Diodes Part Context

This part belongs to the SMAZ5V1 through SMAZ39 series, covering a voltage range from 5.1V to 39V. All devices in this family share the same DO-214AC (SMA) package dimensions and utilize a color band to denote the cathode end for correct polarity orientation during placement.

Single Zener Diodes Replacement Considerations

Cross-reference with other manufacturers offering 1W Zener diodes in the SMA (DO-214AC) package with a 24V nominal voltage and ±5% tolerance. Verify compatibility regarding maximum power dissipation and thermal resistance specifications before substitution.
