SML-D14U2WT86A

LED Indication - Discrete Overview

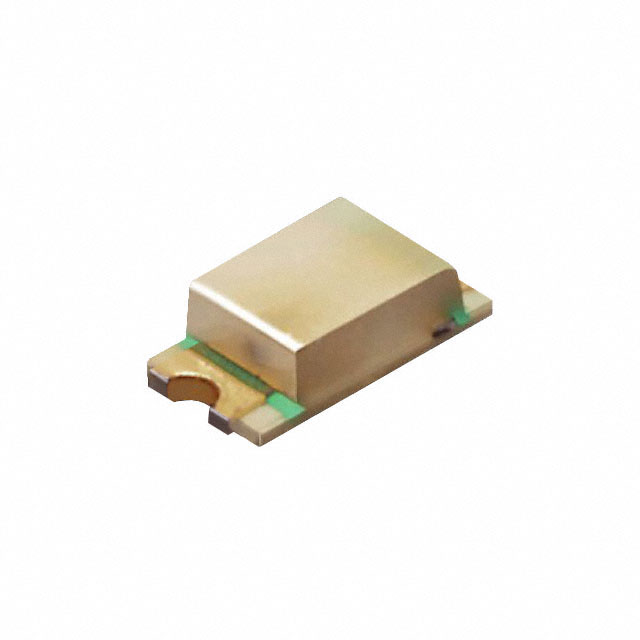

The SML-D14U2WT86A is a single-color red LED from the ROHM SML-D14x(A) series, designed for surface-mount applications. It features a standard 0603 (1608 metric) package with dimensions of 1.6 mm length, 0.8 mm width, and 0.55 mm height. The device emits light at a dominant wavelength of 615 nm with a typical luminous intensity of 160 mcd. Electrical characteristics include a forward voltage of 2 V at a forward current of 20 mA, with a power dissipation rating of 75 mW. It operates within a temperature range of -40°C to +100°C.

LED Indication - Discrete Feature Summary

• Utilizes an AlGaInP chip structure for efficient red light emission in a compact form factor.
• Features a milky white diffused lens to provide a wide viewing angle and uniform light distribution.
• Complies with RoHS standards and supports moisture-sensitive handling protocols.

LED Indication - Discrete Applications

• Home appliance indicator lights
• Industrial equipment status displays
• Healthcare device signaling
• Office equipment controls

LED Indication - Discrete Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm that the received parts match the specific suffix WT86A for tape-and-reel packaging. Ensure storage conditions adhere to humidity sensitivity levels specified in the datasheet to prevent degradation prior to soldering.

LED Indication - Discrete Selection Notes

Select this component when a standard 0603 footprint is required for red indication. Consider the 160 mcd intensity and 615 nm wavelength for visibility requirements. Evaluate the 20 mA forward current and 75 mW power dissipation against thermal constraints in the final assembly design.

LED Indication - Discrete Part Context

This part belongs to the SML-D14x(A) series, which offers a mass-produced lineup of small surface-mount LEDs. The series provides various color and brightness options with a proven market track record for reliability in consumer and industrial electronics.

LED Indication - Discrete Replacement Considerations

SML-D14U2W(C) is listed as an automotive-grade alternative within the same series. Verify if automotive qualification is required for the specific application environment before substituting.
