SMTL2-UYC

LED Indication - Discrete Overview

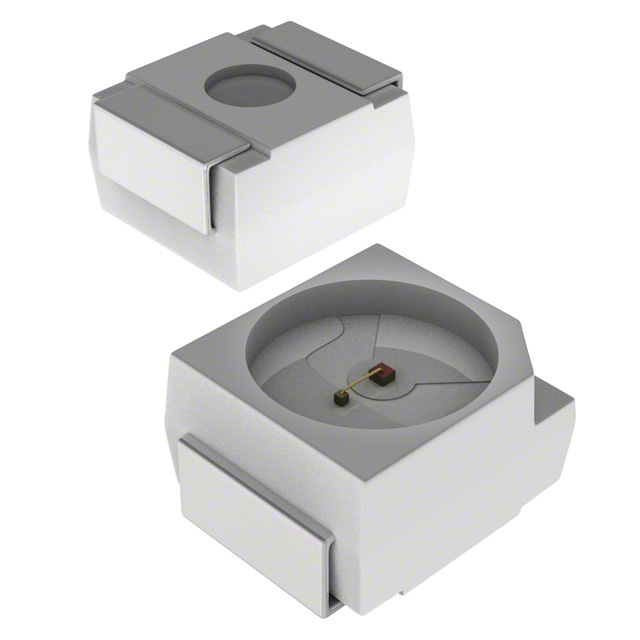

The SMTL2-UYC is a single-color surface-mount LED manufactured by Bivar Inc., designed for panel-mounted indicator applications. It features an ultra-yellow lens with a water-clear finish to optimize light transmission and visibility. The component utilizes a PLCC-2 package configuration, providing a compact footprint suitable for high-density circuit board layouts. It emits yellow light at a peak wavelength of approximately 591 nm, ensuring distinct color identification in electronic systems. The device operates with a standard forward current rating, delivering reliable luminous intensity for status indication purposes.

LED Indication - Discrete Feature Summary

• Utilizes a PLCC-2 surface-mount package for standardized PCB integration
• Features an ultra-yellow lens with a water-clear finish for enhanced brightness
• Provides consistent yellow light emission for clear visual status indication

LED Indication - Discrete Applications

• Electronic equipment status indicators
• Panel-mounted control interface lighting
• Signal indication in consumer electronics

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version for the SMTL2-UYC to confirm current RoHS compliance and moisture sensitivity levels prior to procurement. Ensure that the ordering suffix matches the required packaging format, such as cut tape or reel, as specified by the manufacturer's official documentation. Cross-reference the part number against the latest distributor catalogs to confirm availability and lead times, noting that component statuses may change without immediate notice.

LED Indication - Discrete Selection Notes

Select the SMTL2-UYC when a compact, surface-mount solution is required for yellow status indication. Consider its PLCC-2 form factor for compatibility with existing footprints and reflow soldering processes. Evaluate the viewing angle and luminous intensity requirements against the application's visibility needs. Ensure that the operating temperature range and forward voltage specifications align with the system's power supply and environmental constraints.

LED Indication - Discrete Part Context

This component belongs to Bivar Inc.'s family of single-color surface-mount LEDs, specifically designed for industrial and commercial applications requiring reliable visual signaling. The PLCC-2 series offers a balance between size and performance, widely adopted in electronics manufacturing for its ease of automated assembly. This particular variant focuses on yellow spectrum output, catering to common alarm or warning indicator standards within the industry.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with direct replacements by matching the PLCC-2 package dimensions, pin configuration, and electrical characteristics such as forward voltage and peak wavelength. Consult the manufacturer's official cross-reference guides for any officially sanctioned alternatives.
