SPRH1210-150M

Fixed Inductors Overview

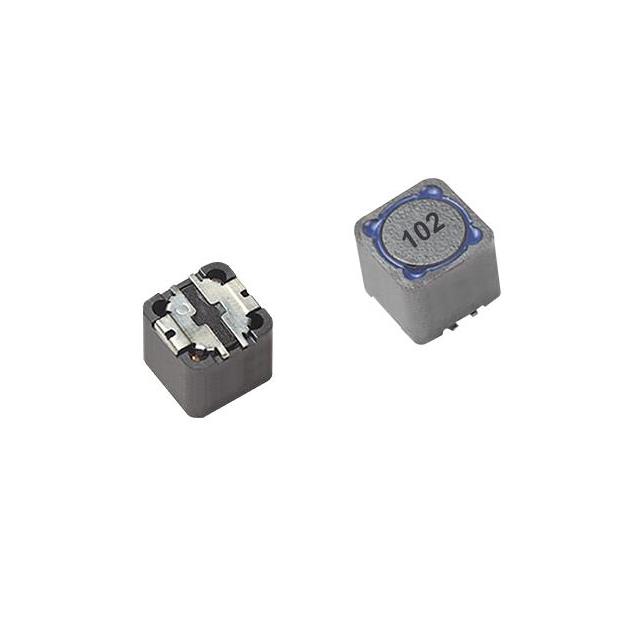

The SPRH1210-150M is a shielded drum core, wirewound fixed inductor manufactured by CODACA. It features an inductance of 15 µH with a tolerance of ±20%. The component has a maximum DC resistance (DCR) of 23.8 mΩ and a rated current (Irms) of 5.75 A. Saturation current (Isat) is specified at 6.20 A. It operates within a temperature range of -40°C to +125°C and is tested at 100 kHz. The package is 2-SMD with dimensions of 12.00mm x 12.00mm x 10.00mm max.

Fixed Inductors Feature Summary

• Magnetically shielded drum core construction for reduced electromagnetic interference
• High current handling capability with low DC resistance
• RoHS compliant and lead-free manufacturing process

Fixed Inductors Applications

• Buck converters in notebook PCs and LCD TVs
• Set-top boxes and game machines
• Network communication equipment power supplies

Fixed Inductors Procurement Notes

Verify the specific ordering suffix required for your packaging needs, such as tape and reel or cut tape options. Confirm that the AEC-Q200 rating aligns with automotive application requirements if applicable. Ensure the 15 µH value and 5.75 A current rating meet the circuit design specifications before finalizing the purchase order.

Fixed Inductors Selection Notes

Select this component when a compact surface-mount inductor with high saturation current is required. The 1210 footprint offers a balance between size and current capacity. Consider the 23.8 mΩ DCR for efficiency calculations in low-voltage, high-current applications. Verify thermal performance under load conditions within the specified operating temperature range.

Fixed Inductors Part Context

This part belongs to the SPRH1210 series of SMD power inductors designed for LED drivers and general power supply applications. The series includes various inductance values ranging from 1 µH to 1000 µH, all sharing the same 12x12x10 mm mechanical outline. The series is characterized by magnetic shielding and low DCR for efficient power conversion.

Fixed Inductors Replacement Considerations

Direct substitutes include other parts from the SPRH1210 series with identical electrical parameters. Cross-reference with other manufacturers offering 15 µH, 5.75 A, 1210 package shielded inductors. Ensure compatibility with existing PCB footprints and reflow soldering profiles.
