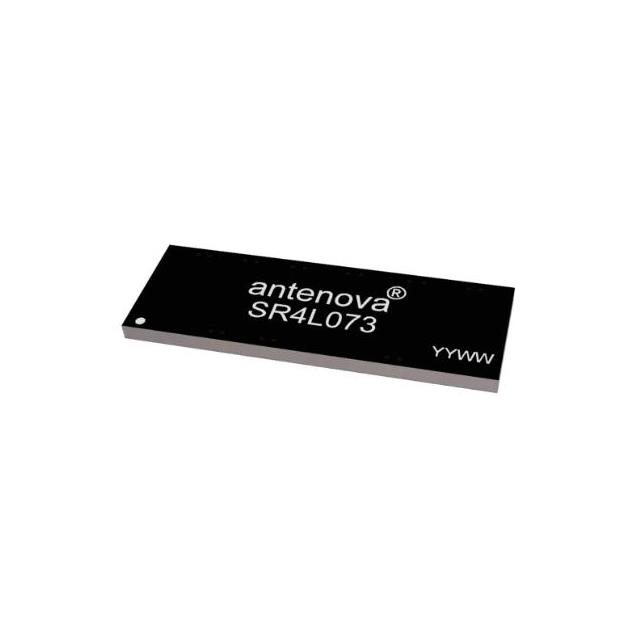

SR4L073

SR4L073 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Antenova. Its product description is PHARAOH LTE ANTENNA. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for SR4L073

• Description：PHARAOH LTE ANTENNA
• Series：lamiiANT®
• Mfr：Antenova
• Package：Tape & Reel (TR),Cut Tape (CT)
• RF Family/Standard：Cellular
• Frequency Group：Wide Band
• Frequency (Center/Band)：761MHz, 892MHz, 1.96GHz, 2.35GHz, 2.59GHz
• Frequency Range：698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz
• Antenna Type：Chip
• Number of Bands：5
• VSWR：1.7, 2.2, 2.8, 3.8
• Return Loss：-11.3dB, -8.5dB, -6.4dB, -4.6dB
• Gain：-1.4dBi, -0.1dBi, 2.9dBi, 2.6dBi, 2.9dBi
• Features：-
• Termination：SMA Female
• Ingress Protection：-
• Grade：-
• Qualification：-
• Mounting Type：Surface Mount
• Height (Max)：0.130" (3.30mm)
• Applications：4G, LTE
• Power - Max：-
