SRU6011-220Y

Fixed Inductors Overview

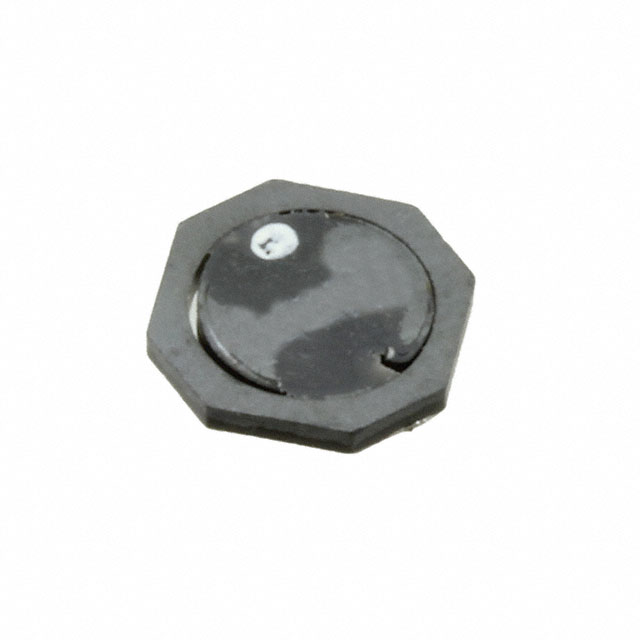

The Bourns SRU6011-220Y is a shielded surface-mount power inductor from the SRU6011 series, featuring a ferrite core and wirewound construction. It provides an inductance of 22 µH with a tolerance of ±30%. The component has a maximum DC current rating of 800 mA and a saturation current of 800 mA. Its maximum DC resistance is 390 mOhms. The device operates within a temperature range of -40°C to +125°C and measures 6.0 mm by 6.0 mm by 1.1 mm.

Fixed Inductors Feature Summary

• Shielded SMD design minimizes electromagnetic interference
• Ferrite core construction for stable performance
• Compact surface-mount footprint for automated assembly

Fixed Inductors Applications

• Power supply circuits
• DC-DC converters
• General electronic equipment filtering

Fixed Inductors Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm availability status. Note that the SRU6011 series may be subject to End-of-Life transitions or discontinuation notices. Ensure the ordering suffix matches the required packaging format. Cross-reference specifications with the latest datasheet to confirm electrical parameters before integration into designs.

Fixed Inductors Selection Notes

Select this component for applications requiring compact shielding and moderate current handling. Compare saturation and RMS current ratings against circuit load requirements. Evaluate thermal performance at maximum operating temperatures. Consider alternative series if higher current capacity or different physical dimensions are necessary for the specific PCB layout constraints.

Fixed Inductors Part Context

This component belongs to the Bourns SRU6011 series of shielded surface-mount power inductors. These parts are designed for high-frequency switching applications where space efficiency and magnetic shielding are critical. The series utilizes a composite core structure to balance inductance stability with low core losses.

Fixed Inductors Replacement Considerations

Check for direct cross-references in distributor databases. Verify that any substitute part matches the 22 µH inductance, 800 mA current ratings, and 6.0x6.0x1.1 mm package dimensions. Confirm compatibility with existing PCB footprints and thermal management strategies.
