SSL-LX5063SGT

LED Indication - Discrete Overview

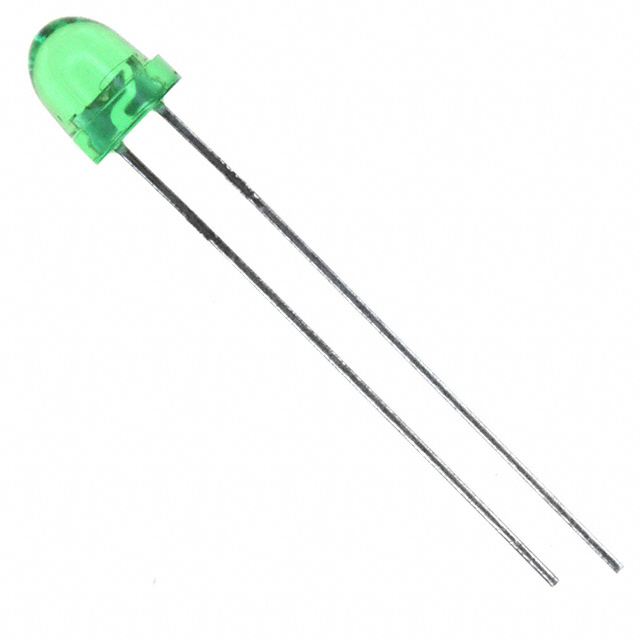

The SSL-LX5063SGT is a single-color super ultra-green LED manufactured by Lumex. It utilizes a T-1 3/4 (5 mm) through-hole radial mount package with a clear dome lens. The component emits light at a peak wavelength of 565 nm and offers a nominal luminous intensity of 200 mcd. Electrical characteristics include a maximum forward current of 25 mA. The device operates within a temperature range of -40 °C to 85 °C and complies with RoHS standards.

LED Indication - Discrete Feature Summary

• Super ultra-green emission color for high visibility applications
• Clear dome lens design providing a round light shape
• Radial through-hole mounting configuration

LED Indication - Discrete Applications

• Panel indicator lights
• Instrumentation status displays
• General purpose visual signaling

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to confirm exact optical and electrical parameters, as variations may exist within the product line. Confirm lead times and availability directly with authorized distributors or the manufacturer, as stock levels fluctuate. Ensure compliance with regional environmental regulations such as RoHS before finalizing procurement decisions.

LED Indication - Discrete Selection Notes

Select this component when a standard 5 mm through-hole green LED is required for panel mounting. Consider the 200 mcd intensity and 565 nm wavelength for visibility requirements. Verify that the 25 mA maximum forward current aligns with the circuit design constraints and thermal management capabilities of the target application environment.

LED Indication - Discrete Part Context

This part belongs to Lumex's Standard LEDs category, specifically designed for through-hole PCB assembly. The T-1 3/4 form factor is a common industry standard for general-purpose indicators. The product line focuses on reliable visual signaling components for electronic equipment and industrial control panels.

LED Indication - Discrete Replacement Considerations

Consult official Lumex documentation for confirmed substitute part numbers. Cross-reference specifications such as wavelength, intensity, and package dimensions when evaluating alternative components from other manufacturers.
