SSL-LX5093SID

LED Indication - Discrete Overview

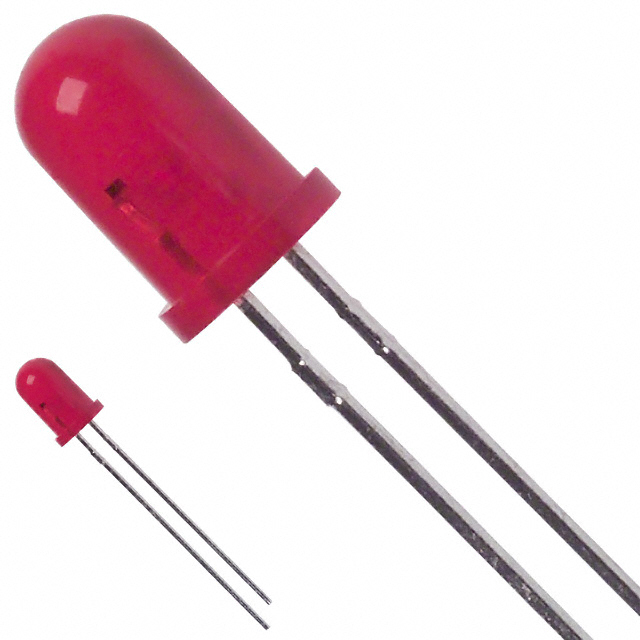

The SSL-LX5093SID is a standard through-hole single-color LED manufactured by Lumex. It features a red illumination color with a peak wavelength of 625nm and utilizes a diffused lens for light distribution. The component is housed in a T-1 3/4 (5mm) round package, designed for radial mounting on printed circuit boards. Key electrical parameters include a forward current rating of 20mA and a forward voltage of 1.7V. The device offers a luminous intensity of 40mcd and provides a viewing angle of 60 degrees, suitable for general indication applications.

LED Indication - Discrete Feature Summary

• Red illumination with 625nm peak wavelength
• Diffused lens for wide light distribution
• T-1 3/4 (5mm) through-hole radial package

LED Indication - Discrete Applications

• Panel status indicators
• Power supply signaling
• Equipment operation alerts

LED Indication - Discrete Procurement Notes

Verify the specific suffix configuration against the manufacturer's official datasheet to ensure compatibility with required optical and electrical specifications. Confirm that the component meets all necessary environmental compliance standards for the intended application before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a standard red indicator with moderate brightness is required. Ensure the design accommodates the 5mm through-hole footprint and 20mA forward current requirements. Consider the diffused lens characteristic for applications requiring uniform light visibility from multiple angles.

LED Indication - Discrete Part Context

This part belongs to Lumex's standard LED series, characterized by reliable performance in basic indication roles. The SSL-LX5093SID represents a common variant within the family, distinguished by its specific red wavelength and diffused optical properties for general-purpose electronic equipment signaling.

LED Indication - Discrete Replacement Considerations

Consult Lumex documentation for direct substitutes. Variants such as SSL-LX5093ID share similar specifications but may differ in packaging or minor electrical tolerances. Verify pinout and mechanical dimensions before substituting.
