SSL-LX5093UWC/H

LED Indication - Discrete Overview

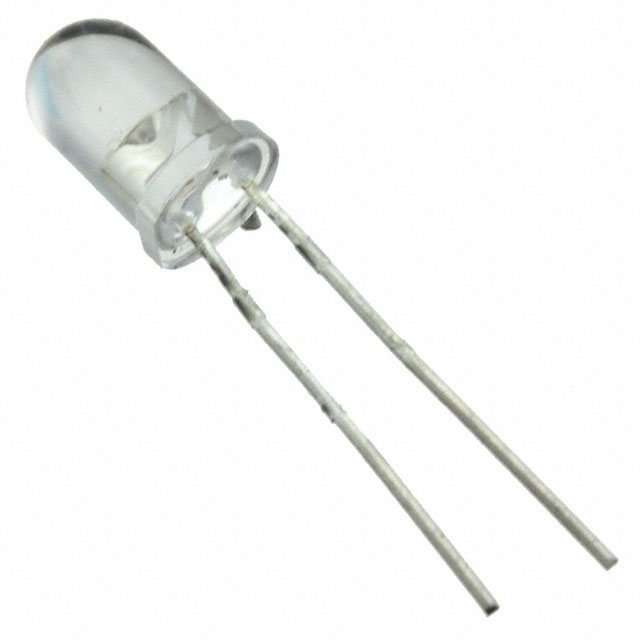

The SSL-LX5093UWC/H is a high-power white LED from Lumex, designed for through-hole mounting in a T-1 3/4 (5 mm) dome lens package. It emits water-clear white light with a viewing angle of 15 degrees and a luminous intensity of 18,000 mcd. The component operates at a forward voltage of 3.6 V and a forward current of 20 mA, with a power rating of 110 mW. It functions within a temperature range of -40°C to +85°C and measures 8.6 mm in height.

LED Indication - Discrete Feature Summary

• High-intensity white light emission suitable for long-range visibility applications
• Narrow 15-degree viewing angle for focused beam projection
• Robust thermal performance across extended industrial temperature ranges

LED Indication - Discrete Applications

• Industrial equipment status indicators requiring high visibility
• Outdoor signaling devices needing focused illumination
• Medical device front panel indicators
• Automotive dashboard or exterior lighting components

LED Indication - Discrete Procurement Notes

Verify the specific suffix configuration against official Lumex documentation to ensure compatibility with required optical and electrical specifications. Confirm RoHS compliance details directly with the manufacturer or authorized distributors prior to procurement. Ensure that the through-hole mounting style aligns with the target PCB design requirements.

LED Indication - Discrete Selection Notes

Select this component when a narrow beam profile and high luminous intensity are critical for the application. The 15-degree viewing angle distinguishes it from standard wide-angle LEDs. Consider the 3.6 V forward voltage drop for circuit design and ensure adequate thermal management for continuous operation within the specified temperature limits.

LED Indication - Discrete Part Context

This part belongs to the SSL-LX5097 series of high-power LEDs manufactured by Lumex. It utilizes a 5 mm T-1 3/4 radial leaded package with a dome lens shape. The product line focuses on providing enhanced brightness and directional control for standard through-hole mounting applications in electronic assemblies.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Cross-reference with other 5mm white LEDs only if electrical parameters and mechanical dimensions match exactly.
