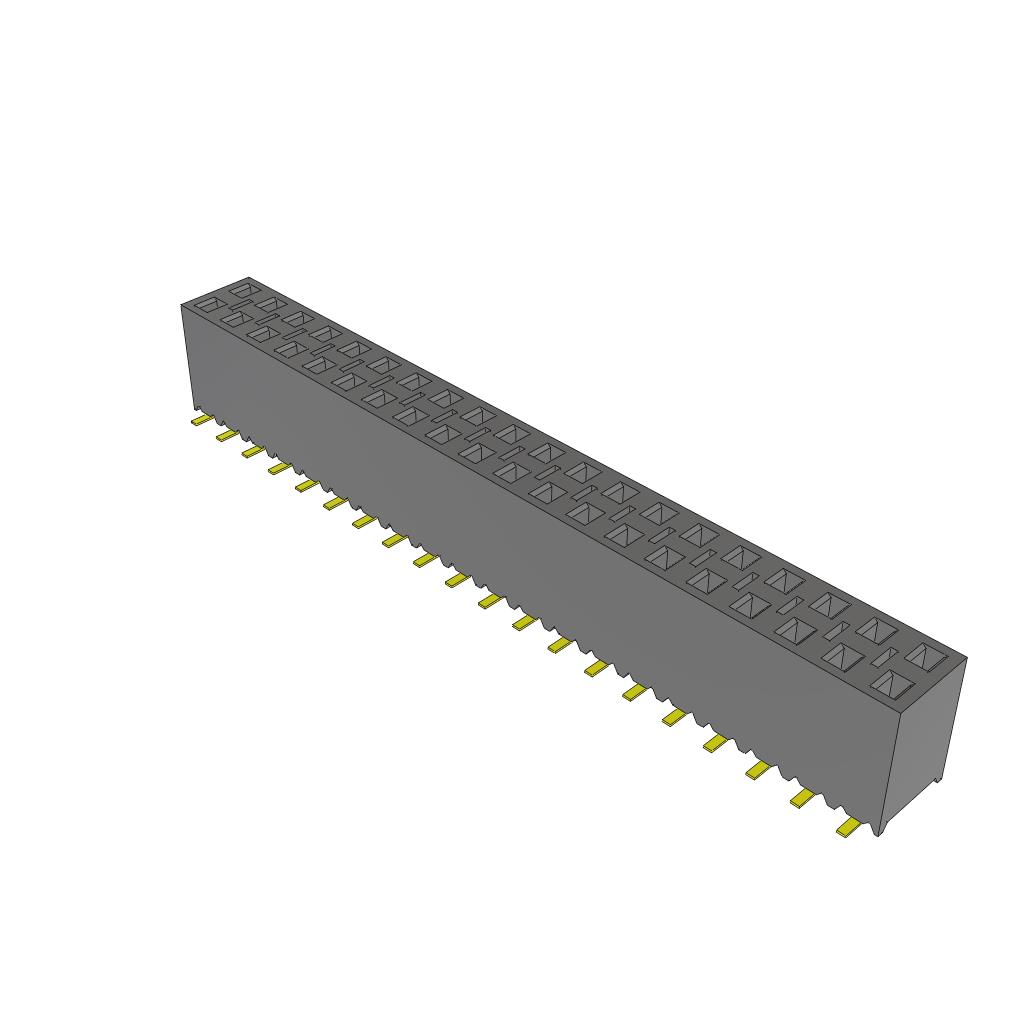

SSM-120-LM-DV-BE

SSM-120-LM-DV-BE is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN RCPT 40POS 0.1 GOLD SMD. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for SSM-120-LM-DV-BE

• Description：CONN RCPT 40POS 0.1 GOLD SMD
• Series：Tiger Claw™ SSM
• Mfr：Samtec Inc.
• Package：Tube,Tube
• Connector Type：Receptacle, Bottom Entry
• Contact Type：Female Socket
• Style：Board to Board or Cable
• Number of Positions：40
• Number of Positions Loaded：All
• Pitch - Mating：0.100" (2.54mm)
• Number of Rows：2
• Row Spacing - Mating：0.100" (2.54mm)
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：10.0µin (0.25µm)
• Insulation Color：Black
• Insulation Height：0.290" (7.37mm)
• Contact Length - Post：-
• Operating Temperature：-55°C ~ 125°C
• Material Flammability Rating：-
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：5.2A per Contact
• Voltage Rating：405VAC, 572VDC
