SX5M45.1584B20F30TNF

Oscillators Overview

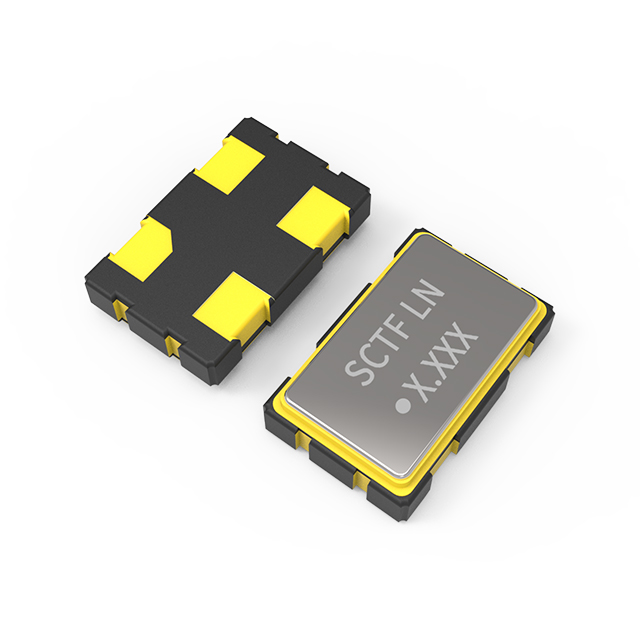

The SX5M45.1584B20F30TNF is a CMOS crystal oscillator manufactured by Shenzhen SCTF Electronics. It operates at a nominal frequency of 45.1584 MHz with a supply voltage of 3.3V. The device features a standard output mode and includes enable/disable functionality. It is housed in a 4-SMD, no-lead package suitable for surface-mount applications.

Oscillators Feature Summary

• CMOS output interface
• Enable/Disable control capability
• Standard XO configuration

Oscillators Applications

• General purpose digital clock generation
• Embedded system timing references
• Microcontroller clock sources

Oscillators Procurement Notes

Verify the exact part number against official manufacturer documentation to ensure compatibility with design requirements. Confirm that the 4-SMD package dimensions and pinout match the PCB footprint specifications. Ensure the 3.3V supply voltage aligns with the target circuit's power rails before procurement.

Oscillators Selection Notes

Select this component when a precise 45.1584 MHz clock signal is required for CMOS-compatible logic circuits. Consider the enable/disable feature if power management or clock gating is necessary within the application design. Verify thermal and electrical specifications against the specific operating environment constraints.

Oscillators Part Context

This oscillator belongs to the SX5M series from Shenzhen SCTF Electronics, designed for surface-mount integration. It provides stable frequency generation for digital systems requiring a 3.3V supply. The standard output format ensures compatibility with common CMOS inputs found in modern electronic devices.

Oscillators Replacement Considerations

Check for direct substitutes within the same series offering identical frequency and package dimensions. Ensure any replacement maintains the CMOS output type and 3.3V operating voltage. Verify pin compatibility and functional equivalence before swapping components.
