T100V-012.8M

Oscillators Overview

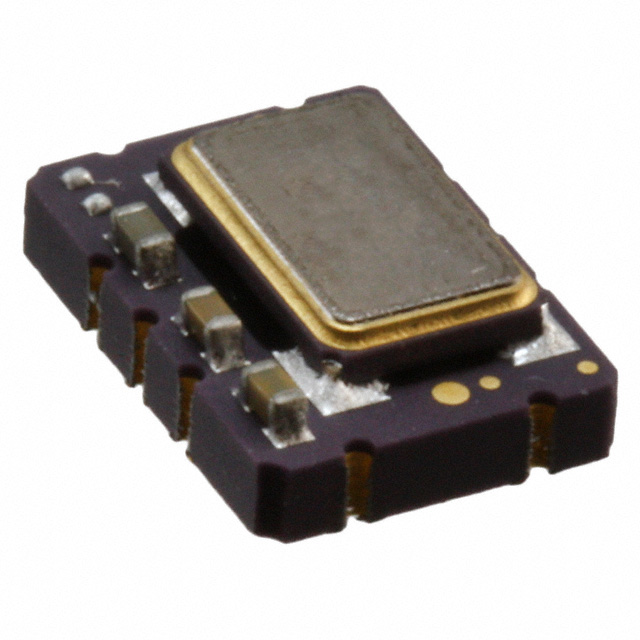

The T100V-012.8M is a Temperature Compensated Crystal Oscillator (TCXO) manufactured by Connor Winfield, operating at a nominal frequency of 12.8 MHz. It utilizes an LVCMOS output interface and requires a 3.3V supply voltage. The device features enable/disable functionality and is housed in a compact 10-SMD, no-lead surface-mount package with dimensions of 7.00mm x 5.00mm x 2.40mm maximum height. It offers a frequency stability of ±100 ppb and operates within a commercial temperature range of 0°C to 70°C, drawing a maximum supply current of 2.1mA.

Oscillators Feature Summary

• Provides high-stability frequency generation through integrated temperature compensation for the crystal resonator.
• Features low power consumption suitable for battery-operated or energy-efficient electronic systems.
• Includes hardware control capability for enabling or disabling the oscillator output signal.

Oscillators Applications

• Cellular base station synchronization
• Test and measurement equipment timing references
• Synchronous Ethernet network infrastructure

Oscillators Procurement Notes

Verify that the specific part number suffix matches the required frequency tolerance and package variant. Confirm RoHS compliance status and lead-free requirements against project specifications. Ensure the supply voltage aligns with the 3.3V requirement. Check for any specific environmental certifications needed for the deployment region.

Oscillators Selection Notes

Select this component when a stable 12.8 MHz reference is required in a small surface-mount footprint. Consider the ±100 ppb stability specification against system jitter requirements. Evaluate the 0°C to 70°C operating range against ambient conditions. Compare power consumption against other TCXO options if battery life is critical.

Oscillators Part Context

This oscillator belongs to the T100/200 series from Connor Winfield, designed for applications demanding precise frequency standards. The series typically includes both TCXO and VCTCXO variants. These devices are engineered to provide reliable performance in telecommunications and networking environments where consistent timing is essential for data integrity.

Oscillators Replacement Considerations

T602-012.8M
