T3A83UD--60C000211U1930

LED Indication - Discrete Overview

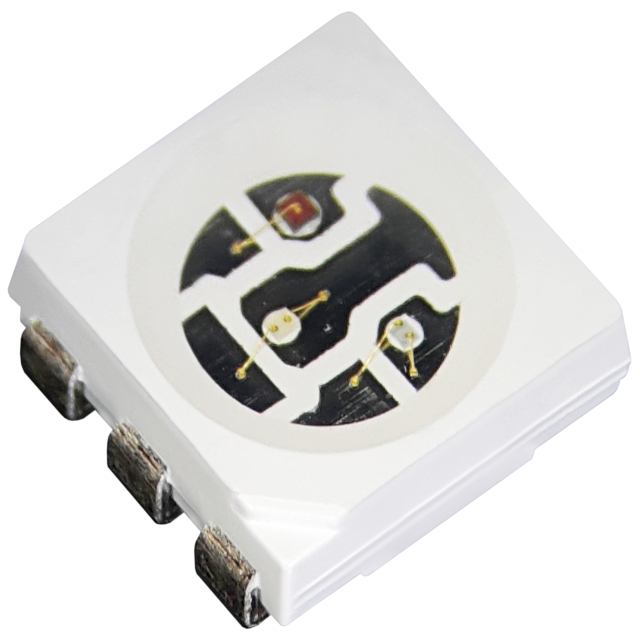

The T3A83UD--60C000211U1930 is a discrete orange LED indicator manufactured by Harvatek Corporation. It features a 6-SMD, J-Lead package with dimensions of 5.4mm length, 5.0mm width, and 1.6mm height. The component emits light at a peak wavelength of 605nm with a typical forward voltage of 2V at a test current of 60mA. It utilizes a round lens with a flat top design and provides a viewing angle of 120 degrees.

LED Indication - Discrete Feature Summary

• Orange color emission with 605nm peak wavelength
• 6-SMD J-Lead surface mount package
• Round lens with flat top style

LED Indication - Discrete Applications

• Discrete LED indication
• Status indicators
• Panel mounting

LED Indication - Discrete Procurement Notes

Verify the exact part number suffix against the manufacturer's latest documentation to ensure correct lens style and electrical characteristics. Confirm RoHS compliance status and moisture sensitivity level (MSL) requirements for your assembly process before procurement.

LED Indication - Discrete Selection Notes

Select this component for applications requiring a standard orange indicator in a J-Lead SMD footprint. Ensure the PCB land pattern matches the 5.4x5.0mm outline and that the driving circuit can supply the required 60mA test current without exceeding thermal limits.

LED Indication - Discrete Part Context

This part belongs to the T3A83 series of surface mount PLCC LEDs from Harvatek Corporation. The series offers various colors and lens styles within the same mechanical footprint, allowing for design flexibility while maintaining consistent board space utilization.

LED Indication - Discrete Replacement Considerations

T3A83UY--60C000211U1930 is an amber variant within the same series. Verify if the specific wavelength difference impacts application requirements before substitution.
