T590N16TOFXPSA1
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters

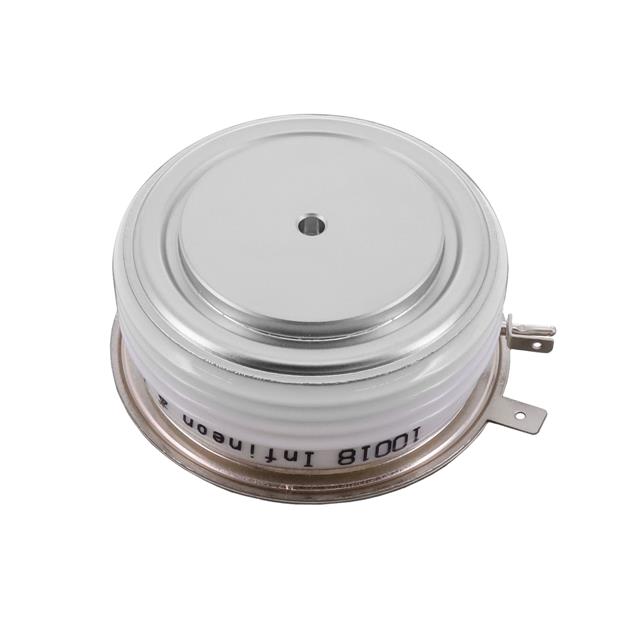

- Description：SCR MODULE 1800V 1250A DO200AB
- Series：-
- Mfr：Infineon Technologies
- Package：Tray
- Structure：Single
- Number of SCRs, Diodes：1 SCR
- Voltage - Off State：1.8 kV
- Current - On State (It (AV)) (Max)：590 A
- Current - On State (It (RMS)) (Max)：1250 A
- Current - Non Rep. Surge 50, 60Hz (Itsm)：9400A @ 50Hz
- Operating Temperature：-40°C ~ 125°C
- Mounting Type：Clamp On
- Package / Case：DO-200AB, B-PUK
- Voltage - Gate Trigger (Vgt) (Max)：2.2 V
- Current - Gate Trigger (Igt) (Max)：250 mA
- Current - Hold (Ih) (Max)：300 mA
- Grade：-
- Qualification：-
Download product information
Overview
The T590N16TOFXPSA1 is a single-phase Silicon Controlled Rectifier (SCR) module manufactured by Infineon Technologies. It features a clamp-type construction within the DO-200AB, B-PUK package and utilizes screw mounting for secure installation. The device supports a repetitive peak off-state voltage of 1800 V and an average on-state current of 590 A. Its root-mean-square on-state current rating reaches 1250 A, with a non-repetitive surge current capacity of 9400 A at 50 Hz. The component operates reliably across a junction temperature range from -40°C to +125°C.
Feature Summary
- Single-phase SCR configuration housed in a robust clamp-style module structure
- High surge current capability designed for demanding power switching applications
- Integrated gate trigger specifications ensuring reliable turn-on characteristics
Applications
- Industrial motor drives requiring high-power phase control
- Static power switching systems for heavy machinery
- Resistive load control circuits in industrial environments
Procurement Notes
Verify part authenticity through official Infineon channels or authorized distributors. Confirm that the specific suffix matches the required electrical parameters. Check for RoHS compliance status as indicated in the latest documentation. Ensure storage conditions meet semiconductor handling standards to prevent moisture damage prior to assembly.
Selection Notes
Select this module when a single-phase SCR with 1800 V blocking voltage is required. The 590 A average current rating suits moderate to high-power applications. Verify that the clamp mounting style fits the mechanical design constraints. Consider thermal management requirements given the 125°C maximum junction temperature limit.
Part Context
This component belongs to the T590N series of high-power thyristor modules. It shares the same base part number prefix with other variants differing in voltage ratings or packaging. The TOFXPSA1 suffix denotes specific manufacturing and compliance attributes defined by Infineon for this particular unit configuration.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult Infineon technical support for qualified alternatives if this discontinued item is no longer sourced.
