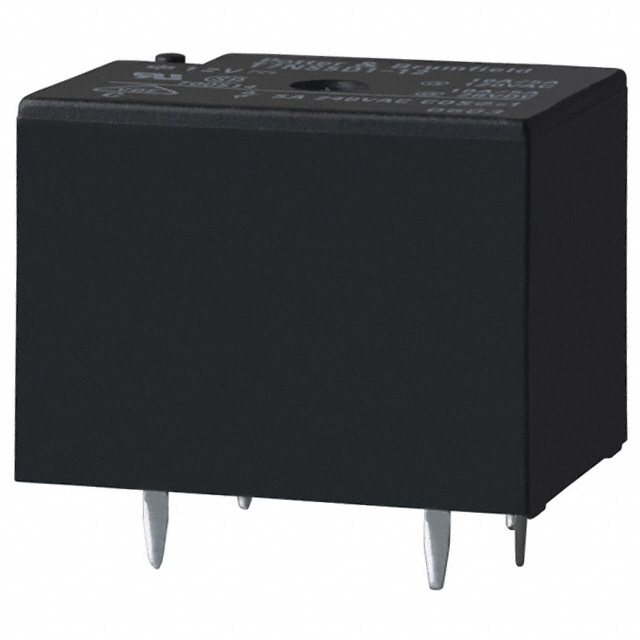

T7NS5D1-48

T7NS5D1-48 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Potter & Brumfield Relays. Its product description is RELAY GEN PURPOSE SPDT 10A 48V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for T7NS5D1-48

• Description：RELAY GEN PURPOSE SPDT 10A 48V
• Series：T7N
• Mfr：TE Connectivity Potter & Brumfield Relays
• Package：Tube
• Mounting Type：Through Hole
• Coil Voltage：48VDC
• Contact Form：SPDT (1 Form C)
• Contact Rating (Current)：10:00 AM
• Switching Voltage：400VAC - Max
• Load - Max Switching：4000VA
• Coil Current：7.5 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：Sealed - Fully
• Coil Insulation：Class F
• Must Operate Voltage：33.6 VDC
• Must Release Voltage：4.8 VDC
• Operating Temperature：-40°C ~ 85°C
• Contact Material：Silver Cadmium Oxide (AgCdO)
• Approval Agency：cURus, VDE
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：9 ms
• Release Time：5 ms

Power Relays, Over 2 Amps datasheet and documents for T7NS5D1-48
