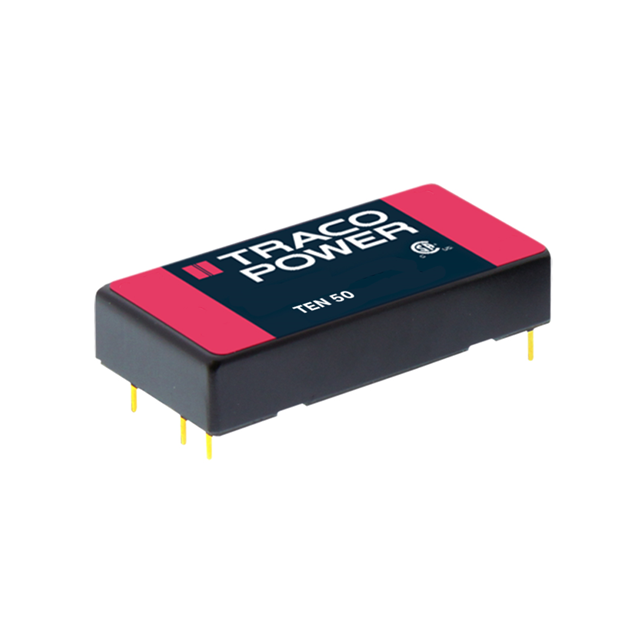

TEN 50-2415

TEN 50-2415 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER 24V 50W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TEN 50-2415

• Description：DC DC CONVERTER 24V 50W
• Series：TEN 50 (50W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：36V
• Voltage - Output 1：24V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：2.08A
• Power (Watts)：50 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, SCP
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：91%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：2.00" L x 1.00" W x 0.43" H (50.8mm x 25.4mm x 11.0mm)
• Supplier Device Package：Module
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for TEN 50-2415
