TFM-130-03-L-D-A

$33.92

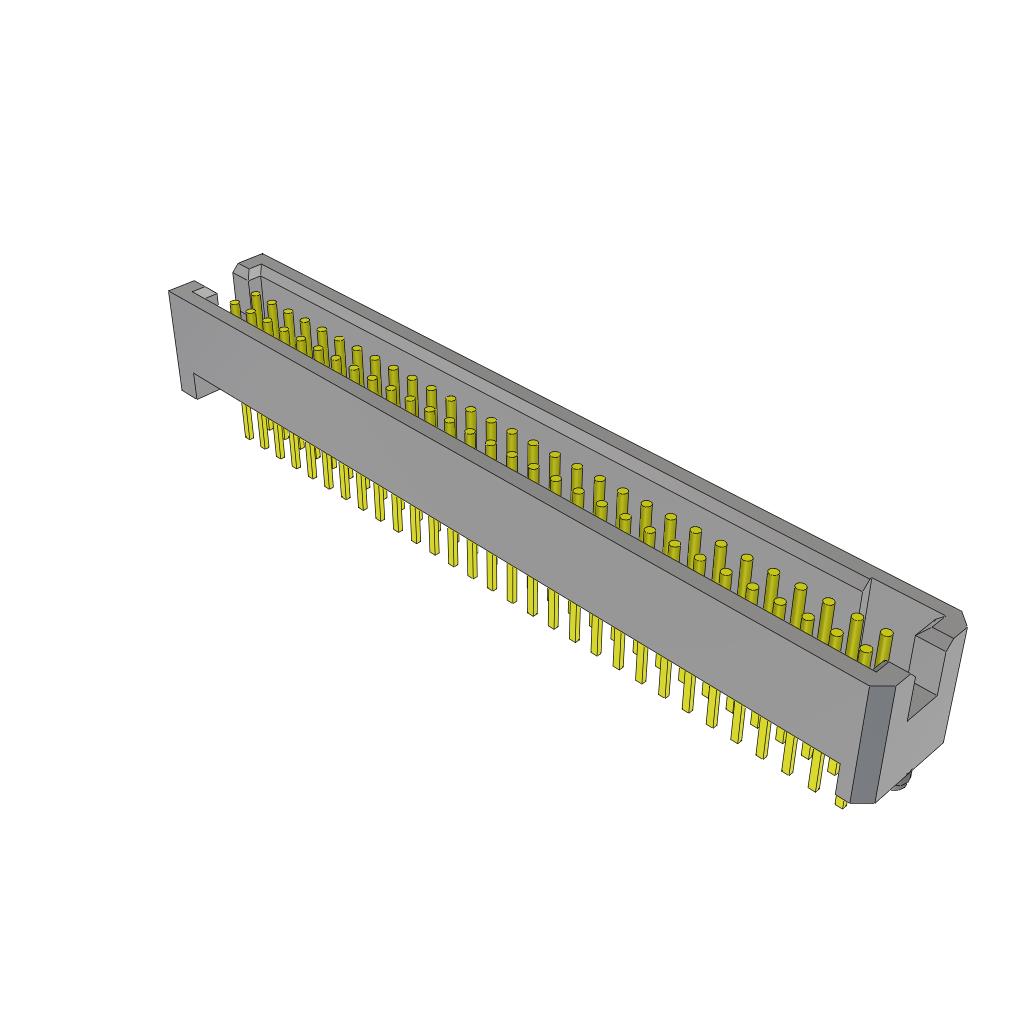

Description：CONN HEADER VERT 60POS 1.27MM
Series：Tiger Eye™ TFM
Mfr：Samtec Inc.
Package：Tube,Tube

SKU:30318f122d02 Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TFM-130-03-L-D-A is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HEADER VERT 60POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for TFM-130-03-L-D-A

Description：CONN HEADER VERT 60POS 1.27MM
Series：Tiger Eye™ TFM
Mfr：Samtec Inc.
Package：Tube,Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：60
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.139" (3.53mm)
Contact Length - Post：0.111" (2.82mm)
Overall Contact Length：-
Insulation Height：0.220" (5.60mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：15.0µin (0.38µm)
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Liquid Crystal Polymer (LCP)
Features：Board Guide
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3.2A per Contact
Voltage Rating：275VAC

Headers, Male Pins datasheet and documents for TFM-130-03-L-D-A

TFM-130-03-L-D-A

Headers, Male Pins Overview

The TFM-130-03-L-D-A is a board-to-board connector from the Samtec Tiger Eye series, featuring a 1.27 mm (0.050 inch) pitch. It comprises 60 contacts arranged in two rows with male pin terminals designed for vertical through-hole mounting. The connector utilizes phosphor bronze contacts with gold plating over nickel for mating surfaces and matte tin for termination. Constructed with liquid crystal polymer insulation rated UL94 V-0, it supports a maximum current of 3.7 A per contact at 250 VAC across an operating temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

Tiger Eye contact system ensures high-reliability interconnection
Shrouded four-wall housing provides precise alignment
Board guide feature facilitates automated assembly

Headers, Male Pins Applications

High-density board-to-board connections
Wire-to-board interconnections
Industrial control systems requiring robust signal integrity

Headers, Male Pins Procurement Notes

Verify that the specific suffix matches the required termination style and orientation. Confirm compliance with RoHS directives and REACH regulations before procurement. Ensure PCB footprint dimensions align with the specified body width and depth to prevent mechanical interference during installation.

Headers, Male Pins Selection Notes

Select this model when a vertical through-hole header with a 1.27 mm pitch is required. The double-row configuration accommodates 60 positions within a compact footprint. Consider the shrouded design for applications needing enhanced connector alignment and protection against misinsertion.

Headers, Male Pins Part Context

This component belongs to the TFM series, characterized by .050 inch pitch terminal strips. The series offers both surface mount and through-hole options with various row configurations. The Tiger Eye technology distinguishes these connectors by providing consistent contact force and reliable performance in demanding environments.
