TFML-110-02-S-D-A

$5.25

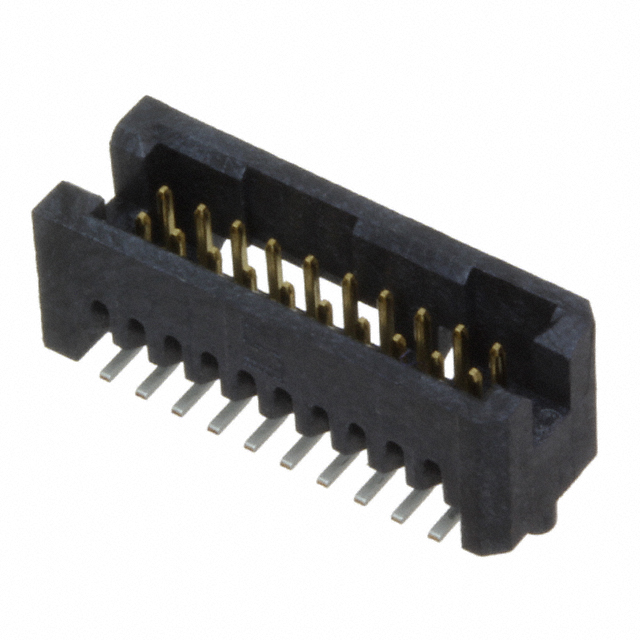

Description：CONN HEADER SMD 20POS 1.27MM
Series：Tiger Eye™ TFML
Mfr：Samtec Inc.
Package：Tube

SKU:de31db9d62b0 Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TFML-110-02-S-D-A is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HEADER SMD 20POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for TFML-110-02-S-D-A

Description：CONN HEADER SMD 20POS 1.27MM
Series：Tiger Eye™ TFML
Mfr：Samtec Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：20
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Friction Lock
Contact Length - Mating：0.134" (3.39mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.220" (5.60mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：30.0µin (0.76µm)
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Liquid Crystal Polymer (LCP)
Features：Board Guide
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：-

Headers, Male Pins datasheet and documents for TFML-110-02-S-D-A

TFML-110-02-S-D-A

Headers, Male Pins Overview

The TFML-110-02-S-D-A is a high-reliability locking terminal strip from Samtec's Tiger Eye series. It features a 0.050" (1.27 mm) pitch with 20 contacts arranged in a dual row configuration. The connector utilizes phosphor bronze terminals with gold plating for mating surfaces and matte tin for termination, ensuring robust electrical performance. Designed for surface mount installation, it offers a straight mounting style suitable for board-to-board or cable applications. The unit operates within a temperature range of -55°C to +125°C and meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

High-reliability locking mechanism ensures secure connection integrity
Tiger Eye design provides precise alignment and stable contact
Surface mount construction facilitates automated PCB assembly

Headers, Male Pins Applications

Board-to-board interconnects requiring high reliability
Cable-to-board connections in compact designs
Industrial control systems demanding stable signal transmission

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Samtec documentation to confirm exact plating thickness, termination type, and packaging format. Ensure compatibility with recommended PCB layouts provided in the datasheet to maintain signal integrity and mechanical stability during operation.

Headers, Male Pins Selection Notes

Select this component when a 0.050" pitch surface mount header with locking features is required. Consider the dual-row layout for increased pin density. Verify that the mating socket matches the Tiger Eye series specifications to ensure proper engagement and locking functionality.

Headers, Male Pins Part Context

This part belongs to the TFML series, an evolution of the TFM line designed for enhanced reliability. It shares the 1.27 mm pitch characteristic but distinguishes itself with specialized locking features and surface mount optimization for high-vibration environments compared to standard through-hole alternatives.
