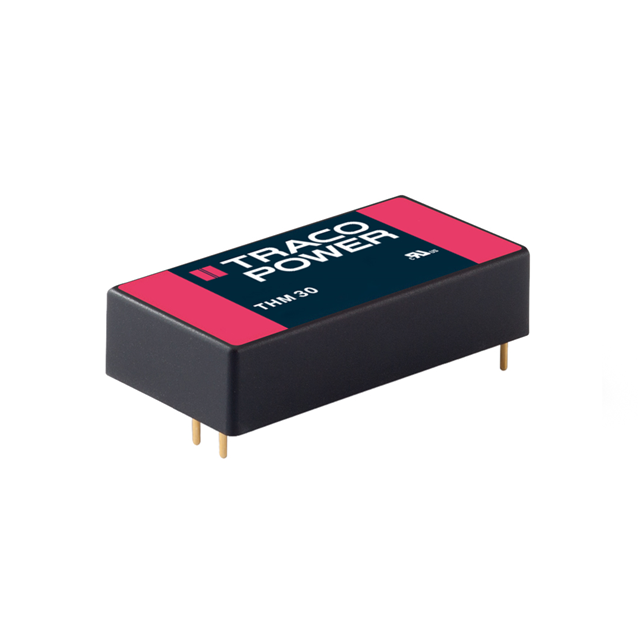

THM 30-4815

THM 30-4815 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER 24V 30W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for THM 30-4815

• Description：DC DC CONVERTER 24V 30W
• Series：THM 30 (30W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：24V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：1.25A
• Power (Watts)：30 W
• Voltage - Isolation：5 kV
• Applications：Medical
• Features：OCP, OTP, OVP, SCP
• Operating Temperature：-40°C ~ 80°C (With Derating)
• Efficiency：89%
• Mounting Type：Through Hole
• Package / Case：5-DIP Module
• Size / Dimension：2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for THM 30-4815
