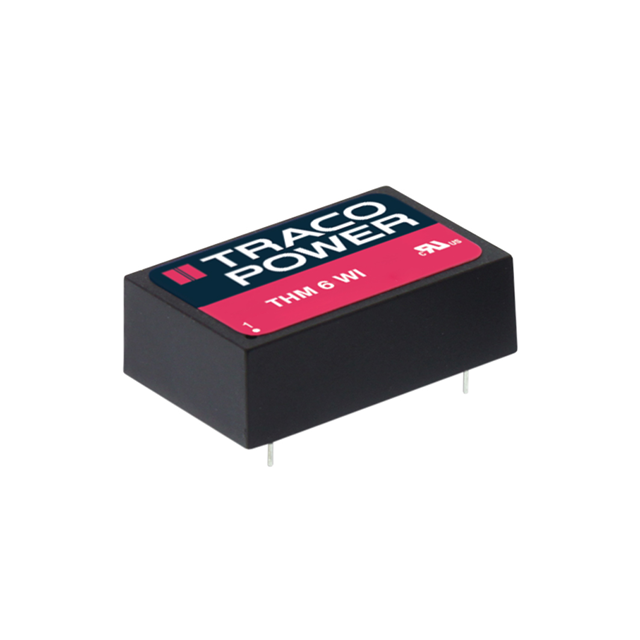

THM 6-4821WI

THM 6-4821WI is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER +/-5V 6W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for THM 6-4821WI

• Description：DC DC CONVERTER +/-5V 6W
• Series：THM 6WI (6W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：75V
• Voltage - Output 1：5V
• Voltage - Output 2：-5V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：600mA, 600mA
• Power (Watts)：6 W
• Voltage - Isolation：5 kV
• Applications：Medical
• Features：OCP, OVP, SCP
• Operating Temperature：-40°C ~ 95°C
• Efficiency：85%
• Mounting Type：Through Hole
• Package / Case：24-DIP Module, 6 Leads
• Size / Dimension：1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for THM 6-4821WI
