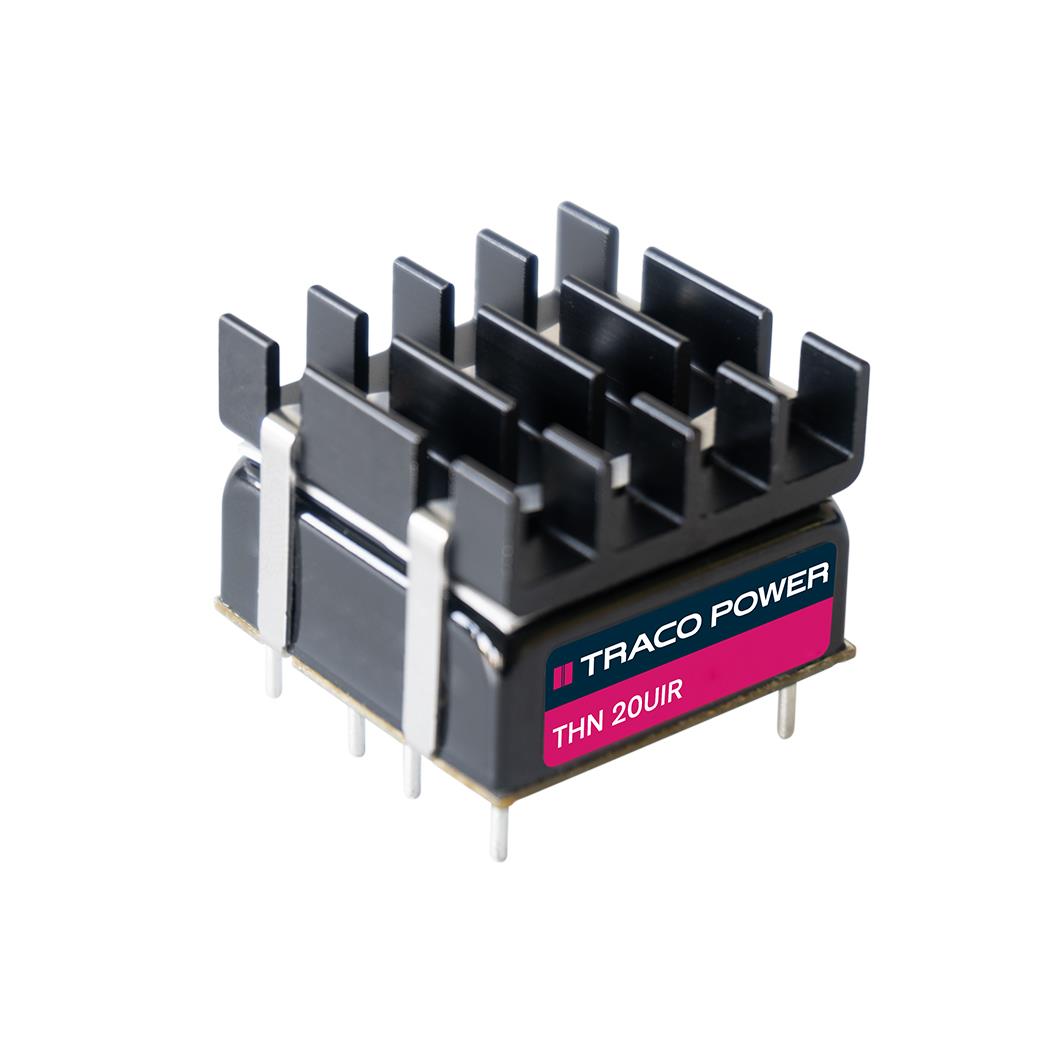

THN 20-7212UIR

THN 20-7212UIR is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is 20 WATT RAILWAY DC/DC CONVERTER. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for THN 20-7212UIR

• Description：20 WATT RAILWAY DC/DC CONVERTER
• Series：THN 20UIR (20W)
• Mfr：Traco Power
• Package：Box
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：14V
• Voltage - Input (Max)：160V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：1.67A
• Power (Watts)：20 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Heat Sink, Remote On/Off
• Operating Temperature：-40°C ~ 105°C
• Efficiency：88%
• Mounting Type：Through Hole
• Package / Case：7-DIP Module, 6 Leads
• Size / Dimension：1.00" L x 1.00" W x 0.74" H (25.4mm x 25.4mm x 18.7mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CB, cURus
• Standard Number：62368-1

DC DC Converters datasheet and documents for THN 20-7212UIR
