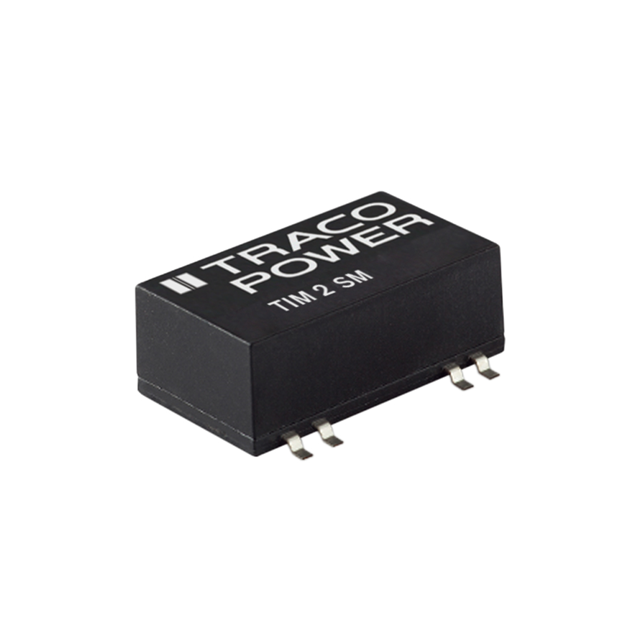

TIM 2-4823SM

TIM 2-4823SM is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER +/-15V 2W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TIM 2-4823SM

• Description：DC DC CONVERTER +/-15V 2W
• Series：TIM 2SM (2W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：15V
• Voltage - Output 2：-15V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：67mA, 67mA
• Power (Watts)：2 W
• Voltage - Isolation：5 kV
• Applications：Medical
• Features：Remote On/Off, OVP, SCP
• Operating Temperature：-40°C ~ 95°C (With Derating)
• Efficiency：81%
• Mounting Type：Surface Mount
• Package / Case：16-SMD Module, 7 Leads
• Size / Dimension：0.96" L x 0.57" W x 0.40" H (24.3mm x 14.4mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for TIM 2-4823SM
