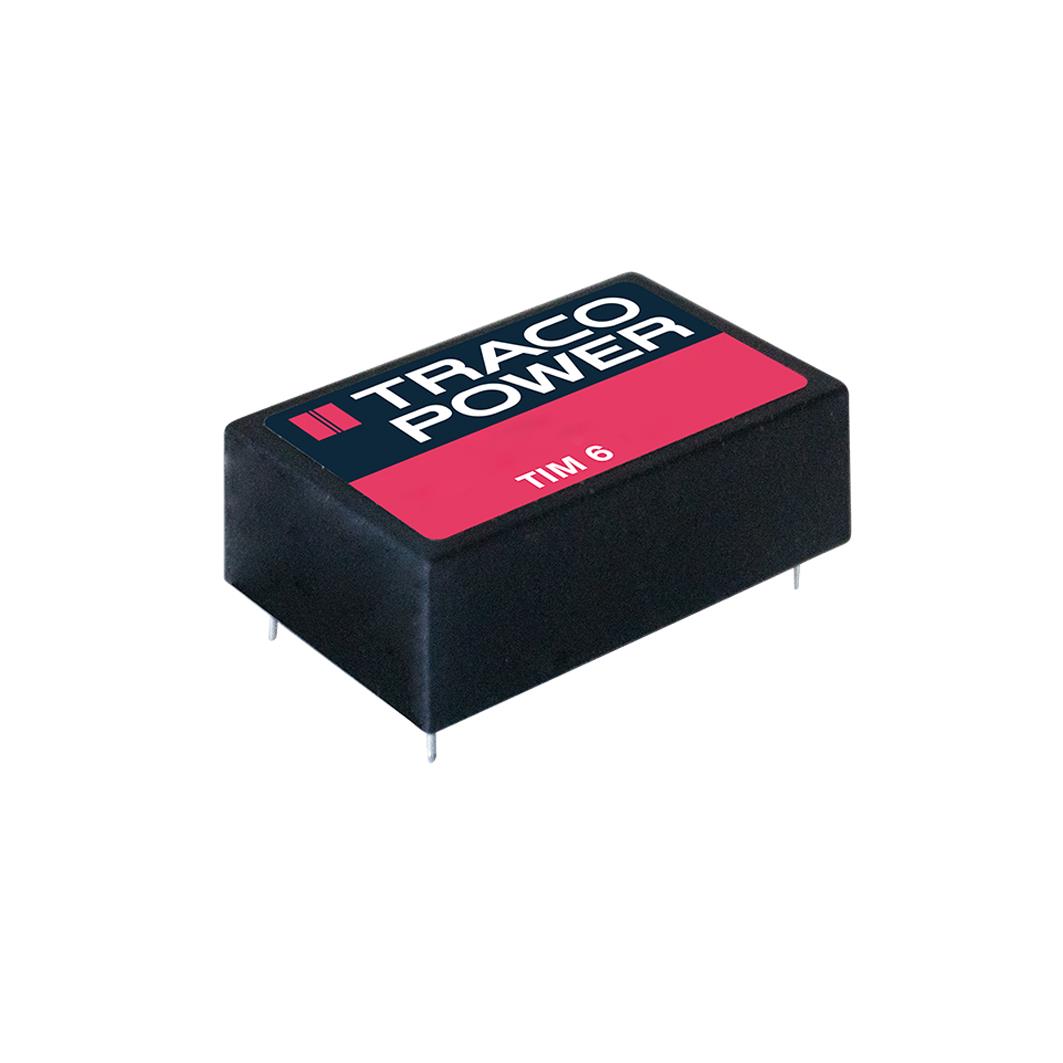

TIM 6-2421

TIM 6-2421 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is 6W MEDICAL DC/DC CONVERTER IN DI. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TIM 6-2421

• Description：6W MEDICAL DC/DC CONVERTER IN DI
• Series：TIM 6 (6W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：36V
• Voltage - Output 1：5V
• Voltage - Output 2：-5V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：600mA, 600mA
• Power (Watts)：6 W
• Voltage - Isolation：7 kV
• Applications：ITE (Commercial), Medical
• Features：-
• Operating Temperature：-40°C ~ 105°C
• Efficiency：84%
• Mounting Type：Through Hole
• Package / Case：24-DIP Module, 6 Leads
• Size / Dimension：1.25" L x 0.80" W x 0.42" H (31.8mm x 20.3mm x 10.7mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CB, cURus
• Standard Number：60601-1; 62368-1

DC DC Converters datasheet and documents for TIM 6-2421
