TIOS101DMWR

Drivers, Receivers, Transceivers Overview

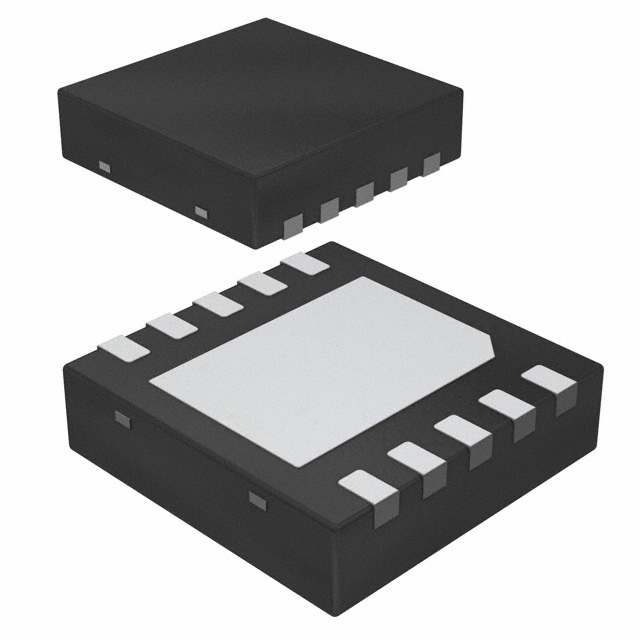

The TIOS101DMWR is a digital sensor output driver manufactured by Texas Instruments, designed for industrial sensor interface applications. It operates within a supply voltage range of 7 V to 36 V, with a typical operating voltage of 24 V. The device provides a maximum output current of 350 mA and draws a working supply current of 2 mA. It supports serial SPI communication interfaces and features reverse polarity protection alongside a configurable current limiter. The component is housed in a VSON-10 package and functions as a single-channel digital output switch. It is rated for an extended operating temperature range from -40°C to +125°C.

Drivers, Receivers, Transceivers Feature Summary

• Integrates reverse polarity protection to safeguard against incorrect power connections.
• Includes a configurable current limiter for flexible load management.
• Supports serial SPI interface for digital control and configuration.

Drivers, Receivers, Transceivers Applications

• Industrial digital sensor output driving
• IO-Link compatible sensor interfaces
• Automotive sensor signal conditioning

Drivers, Receivers, Transceivers Procurement Notes

Verify the specific ordering suffix DMWR to confirm the tape-and-reel packaging format and quantity. Ensure compatibility with the required VSON-10 footprint during PCB layout. Confirm RoHS compliance status through the official datasheet before finalizing procurement specifications.

Drivers, Receivers, Transceivers Selection Notes

Select this component when a robust digital output driver with integrated protection features is required. The wide supply voltage range suits various industrial power standards. Consider the VSON-10 package size for space-constrained designs requiring surface-mount installation.

Drivers, Receivers, Transceivers Part Context

This part belongs to the TIOS101 series of digital sensor output drivers from Texas Instruments. The series focuses on providing reliable interface solutions for industrial sensors with built-in protection mechanisms. The DMWR suffix indicates the specific reel packaging variant available for automated assembly processes.

Drivers, Receivers, Transceivers Replacement Considerations

Check for direct pin-to-pin replacements within the same TIOS family or similar sensor interface ICs from other manufacturers. Verify that alternative components match the 350 mA output current capability and the 7 V to 36 V input voltage range.
