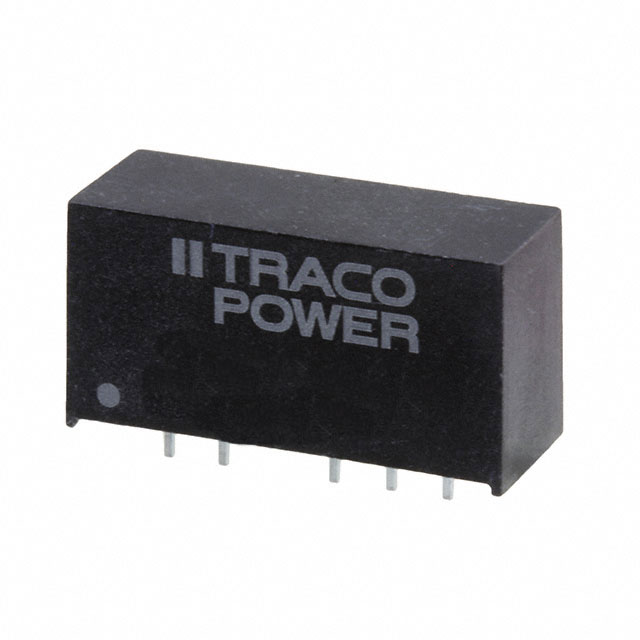

TMH 0512D

TMH 0512D is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER +/-12V 2W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TMH 0512D

• Description：DC DC CONVERTER +/-12V 2W
• Series：TMH (2W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：5V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：12V
• Voltage - Output 2：-12V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：83mA, 83mA
• Power (Watts)：2 W
• Voltage - Isolation：1 kV
• Applications：ITE (Commercial)
• Features：SCP
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：79%
• Mounting Type：Through Hole
• Package / Case：7-SIP Module, 5 Leads
• Size / Dimension：0.77" L x 0.30" W x 0.40" H (19.5mm x 7.5mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for TMH 0512D
