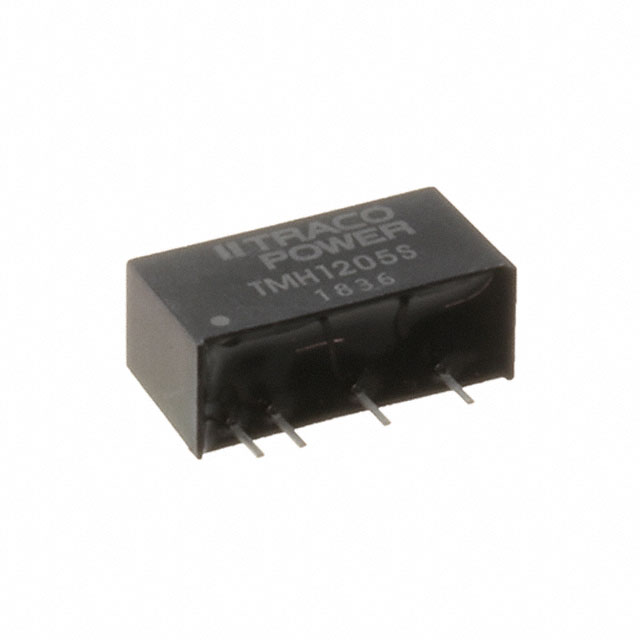

TMH 1205S

TMH 1205S is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER 5V 2W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TMH 1205S

• Description：DC DC CONVERTER 5V 2W
• Series：TMH (2W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：12V
• Voltage - Input (Max)：13.2V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：400mA
• Power (Watts)：2 W
• Voltage - Isolation：1 kV
• Applications：ITE (Commercial)
• Features：SCP
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：78%
• Mounting Type：Through Hole
• Package / Case：7-SIP Module, 4 Leads
• Size / Dimension：0.94" L x 0.54" W x 0.31" H (23.8mm x 13.7mm x 8.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for TMH 1205S
