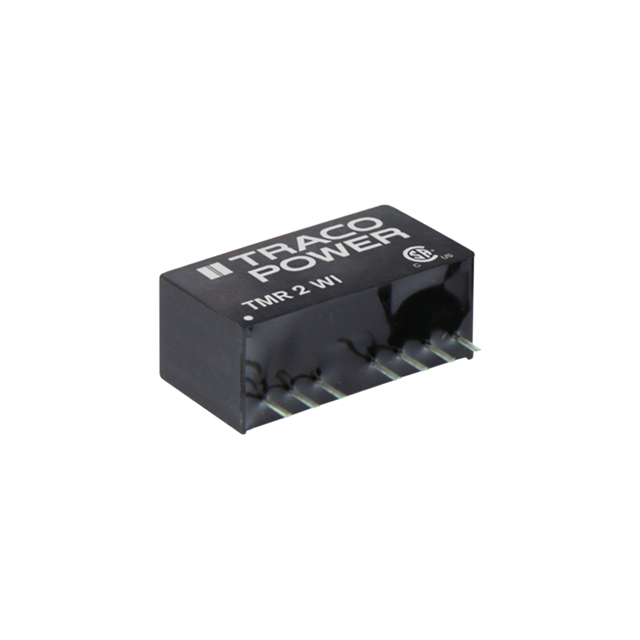

TMR 2-4823WI

TMR 2-4823WI is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER +/-15V 2W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TMR 2-4823WI

• Description：DC DC CONVERTER +/-15V 2W
• Series：TMR 2WI (2W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：75V
• Voltage - Output 1：15V
• Voltage - Output 2：-15V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：65mA, 65mA
• Power (Watts)：2 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, SCP
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：76%
• Mounting Type：Through Hole
• Package / Case：9-SIP Module, 7 Leads
• Size / Dimension：1.02" L x 0.37" W x 0.49" H (26.0mm x 9.3mm x 12.5mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for TMR 2-4823WI
