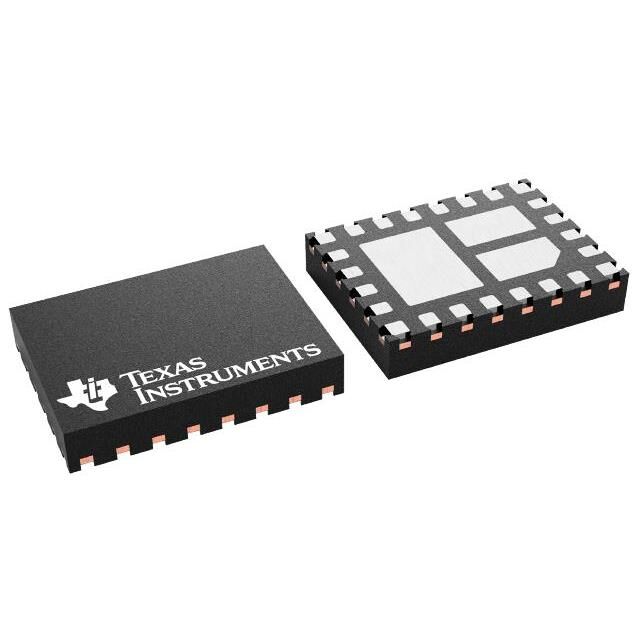

TPS62875B4QWRZVRQ1

$2.75

Description：AUTOMOTIVE, 2.7V TO 6V INPUT, 20
Series：-
Mfr：Texas Instruments
Package：Tape & Reel (TR)

SKU:9945fed0dcdc Category: Voltage Regulators - DC DC Switching Regulators Brand: Texas Instruments

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TPS62875B4QWRZVRQ1 is listed in the Voltage Regulators - DC DC Switching Regulators range at ChipApex. The manufacturer field lists Texas Instruments. Its product description is AUTOMOTIVE, 2.7V TO 6V INPUT, 20. Review the specifications below when checking this part for your BOM.

Voltage Regulators - DC DC Switching Regulators specifications for TPS62875B4QWRZVRQ1

Description：AUTOMOTIVE, 2.7V TO 6V INPUT, 20
Series：-
Mfr：Texas Instruments
Package：Tape & Reel (TR)
Function：Step-Down
Output Configuration：Positive
Topology：Buck
Output Type：Programmable
Number of Outputs：1
Voltage - Input (Min)：2.7V
Voltage - Input (Max)：6V
Voltage - Output (Min/Fixed)：0.4V
Voltage - Output (Max)：1.675V
Current - Output：20A
Frequency - Switching：1.5MHz, 2.25MHz, 2.5MHz, 3MHz
Synchronous Rectifier：Yes
Operating Temperature：-40°C ~ 125°C (TA)
Mounting Type：Surface Mount, Wettable Flank
Package / Case：24-PowerWFQFN
Supplier Device Package：24-WQFN-FCRLF (4.05x3.05)
Grade：Automotive
Qualification：AEC-Q100

Voltage Regulators - DC DC Switching Regulators datasheet and documents for TPS62875B4QWRZVRQ1

TPS62875B4QWRZVRQ1

Voltage Regulators - DC DC Switching Regulators Overview

The TPS62875B4QWRZVRQ1 is an automotive-grade synchronous step-down converter from the Texas Instruments TPS6287x-Q1 series. It operates with an input voltage range of 2.7 V to 6 V and delivers a maximum output current of 20 A. The device features a fixed switching frequency of 3 MHz and supports programmable output voltages between 400 mV and 1.675 V. Packaged in a WQFN-24 format, it functions within a temperature range of -40°C to +125°C.

Voltage Regulators - DC DC Switching Regulators Feature Summary

Automotive qualification compliant with AEC-Q100 standards for high reliability
Integrated synchronous rectification for efficient power conversion
Supports shutdown mode for reduced quiescent current consumption

Voltage Regulators - DC DC Switching Regulators Applications

Automotive infotainment system power distribution
Telematics control unit voltage regulation
ADAS sensor module power supply

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the complete part number including suffixes against official Texas Instruments documentation to ensure correct package type and electrical specifications. Confirm AEC-Q100 compliance requirements match the target application environment. Check datasheet details for moisture sensitivity level and recommended soldering profiles prior to procurement.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when a single-channel solution is required for high-current automotive loads. The fixed 3 MHz frequency allows for smaller passive components compared to lower-frequency alternatives. Ensure the design accommodates the specific thermal characteristics of the WQFN-24 package under full load conditions.

Voltage Regulators - DC DC Switching Regulators Part Context

This device belongs to the TPS6287x-Q1 family of high-efficiency DC-DC converters designed specifically for automotive electronics. The series offers various output current capabilities and switching frequencies to suit different power density requirements while maintaining robust performance in electric vehicle environments.

Voltage Regulators - DC DC Switching Regulators Replacement Considerations

Consult the TPS62875 family datasheet for pin-compatible or functionally similar alternatives such as TPS62875B1QWRZVRQ1 or TPS62875B3QWRZVRQ1. Verify that any substitute maintains the same 20 A output capability and 3 MHz switching frequency.
