TPS728180285YZUT

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

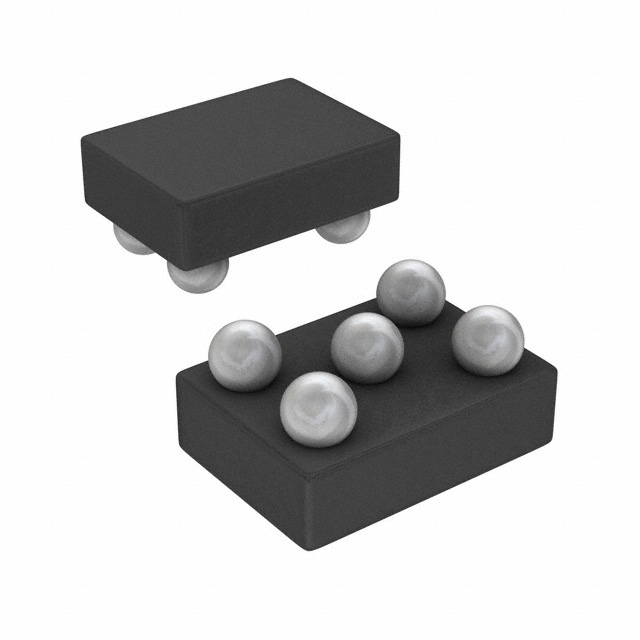

The TPS728180285YZUT is a single-output low-dropout (LDO) voltage regulator from the Texas Instruments TPS728 series. It provides a fixed output voltage of 2.85 V with a maximum continuous output current of 200 mA. The device operates within an input voltage range of 1.6 V to 5.5 V and features a typical dropout voltage of 230 mV at full load. It offers high power supply rejection ratio (PSRR) performance, typically 65 dB at 1 kHz. The component is housed in a DSBGA-5 package and supports surface-mount installation. It functions reliably across an extended junction temperature range from -40°C to +125°C.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

• Dual-level architecture supporting both standard and ultra-low noise operation modes for flexible power integrity requirements.
• Integrated internal feedback resistors provide fixed output voltage options without requiring external components.
• High PSRR performance effectively attenuates power supply noise across a wide frequency spectrum.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

• Portable battery-powered consumer electronics
• Wireless communication modules
• Embedded systems requiring clean analog power rails

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the specific suffix 'YZUT' against the manufacturer's official datasheet to confirm the package type, tape-and-reel quantity, and moisture sensitivity level. Ensure the ordering part number matches the required output voltage tolerance and thermal performance specifications for your target application environment.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component when a compact solution is needed for stable 2.85 V regulation with moderate current demands. Consider the dual-level feature if system design requires switching between low-noise and standard modes. Verify that the input voltage remains above the minimum threshold to maintain regulation under all operating conditions.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This device belongs to the TPS728 family of LDO regulators designed for space-constrained applications. The family emphasizes small footprint solutions using advanced packaging technologies like DSBGA. These regulators are engineered to support portable devices where power efficiency and board real estate are critical constraints.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Replacement Considerations

Consult the TPS728 family cross-reference list for compatible alternatives with similar pinouts or electrical characteristics. Verify that any substitute maintains the same output voltage, current capability, and package dimensions to ensure mechanical compatibility.
