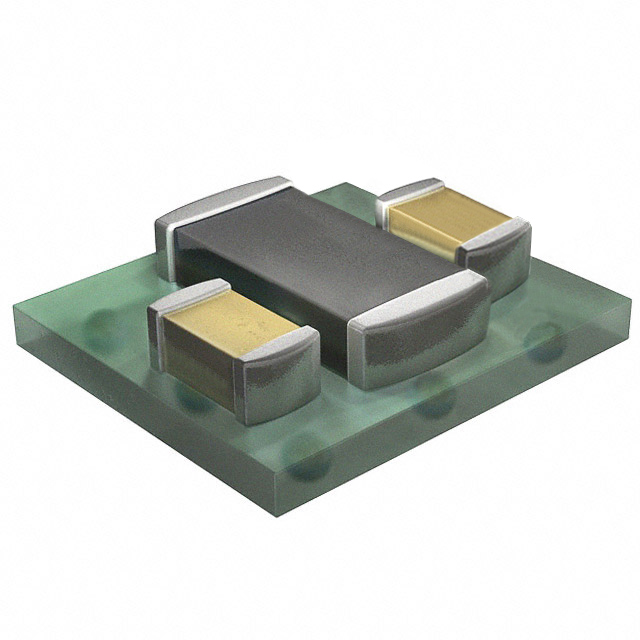

TPS82693SIPT

TPS82693SIPT is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Texas Instruments. Its product description is DC DC CONVERTER 2.85V. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TPS82693SIPT

• Description：DC DC CONVERTER 2.85V
• Series：MicroSip™
• Mfr：Texas Instruments
• Package：Tape & Reel (TR),Cut Tape (CT),Bulk
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：2.3V
• Voltage - Input (Max)：4.8V
• Voltage - Output 1：2.85V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：800mA
• Power (Watts)：-
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：OCP, OTP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：90%
• Mounting Type：Surface Mount
• Package / Case：8-SMD Module
• Size / Dimension：0.11" L x 0.09" W x 0.04" H (2.9mm x 2.3mm x 1.0mm)
• Supplier Device Package：8-uSIP (2.9x2.3)
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for TPS82693SIPT
