TSA6NA4L2G45NS0S1T

$4.79

Description：RF ANT 2.4GHZ CHIP SOLDER SMD
Series：TSA6
Mfr：Taiyo Yuden
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:02de092bff69 Category: RF Antennas Brand: Taiyo Yuden

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

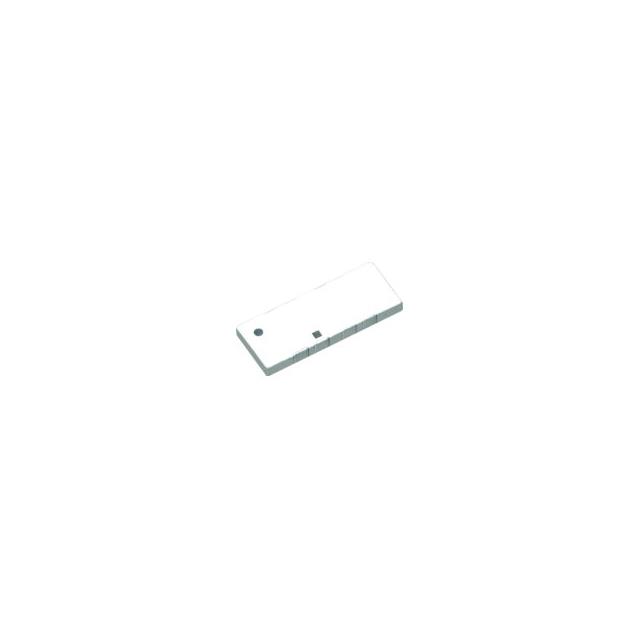

TSA6NA4L2G45NS0S1T is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taiyo Yuden. Its product description is RF ANT 2.4GHZ CHIP SOLDER SMD. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for TSA6NA4L2G45NS0S1T

Description：RF ANT 2.4GHZ CHIP SOLDER SMD
Series：TSA6
Mfr：Taiyo Yuden
Package：Tape & Reel (TR),Cut Tape (CT)
RF Family/Standard：802.15.4, Bluetooth, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.45GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Chip
Number of Bands：1
VSWR：-
Return Loss：-
Gain：-
Features：-
Termination：Solder
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.039" (1.00mm)
Applications：Bluetooth, WLAN, Zigbee™
Power - Max：-

Antennas RF datasheet and documents for TSA6NA4L2G45NS0S1T

TSA6NA4L2G45NS0S1T

Antennas RF Overview

The Taiyo Yuden TSA6NA4L2G45NS0S1T is a surface-mount chip antenna designed for wireless communication systems. It operates at a center frequency of 2450 MHz with a bandwidth spanning 2400 to 2500 MHz. The component supports Bluetooth, Wi-Fi, and ZigBee protocols. It features a compact, low-profile physical design suitable for space-constrained applications. The antenna provides stable performance within the specified frequency range.

Antennas RF Feature Summary

Compact and low-profile physical structure
Wide bandwidth operation
High gain stability

Antennas RF Applications

Bluetooth devices
Wi-Fi modules
ZigBee networks

Antennas RF Procurement Notes

Verify the specific suffix and marking against the official datasheet to ensure correct variant identification. Confirm RoHS compliance status and moisture sensitivity level requirements prior to assembly. Check for any recent product change notifications or obsolescence notices from the manufacturer before finalizing procurement plans.

Antennas RF Selection Notes

Select this component when a low-profile chip antenna is required for 2.4 GHz ISM band applications. Ensure the design accommodates the specific impedance matching network required for optimal performance. Verify that the board layout supports the recommended soldering profile for surface mount technology.

Antennas RF Part Context

This part belongs to the Taiyo Yuden chip antenna series, specifically engineered for multi-protocol wireless connectivity. It is categorized under RF antennas for consumer electronics and IoT devices. The model represents a standard solution for integrating short-range wireless capabilities into portable hardware designs.
