TSM-104-01-LM-DV-A-P

Headers, Male Pins Overview

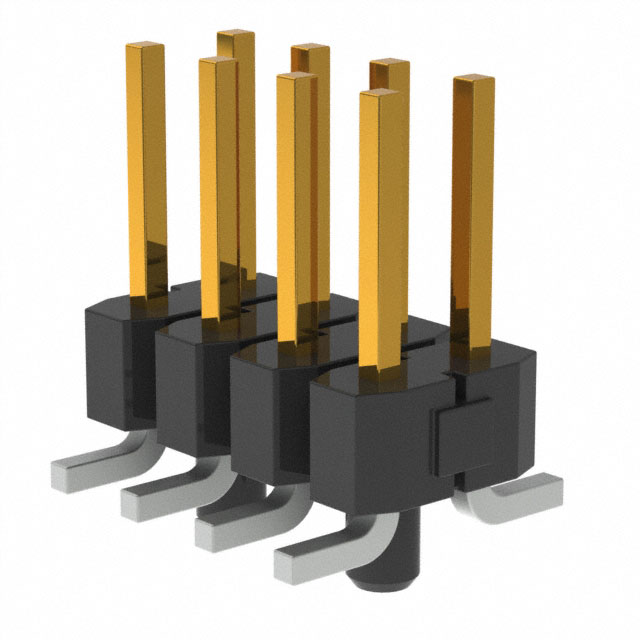

The TSM-104-01-LM-DV-A-P is a surface mount terminal strip from Samtec's TSM series. It features a 0.100 inch (2.54 mm) pitch and utilizes .025 inch square post contacts. This specific configuration includes a double row layout with four positions per row, totaling eight contacts. The component is designed for vertical orientation and employs mixed technology termination methods suitable for surface mounting applications.

Headers, Male Pins Feature Summary

• Features rugged construction verified for extended life in Mixed Flowing Gas environments
• Supports high mating cycle durability ranging from 250 to 2,500 cycles
• Enables up to 8 Gbps performance capabilities for signal integrity
• Offers flexible processing options through mixed technology pin configurations

Headers, Male Pins Applications

• Automotive A-Series product integration
• High-speed data transmission interfaces requiring robust connectivity
• Surface mount assemblies demanding extended environmental reliability

Headers, Male Pins Procurement Notes

Verify the exact suffix codes against official Samtec documentation to ensure correct contact plating, insulation height, and termination style. Confirm that the mixed technology designation aligns with your board layout requirements. Cross-reference the part number with the manufacturer's current Severe Environment Testing (SET) qualification status before finalizing procurement specifications.

Headers, Male Pins Selection Notes

Select this component when vertical surface mount orientation is required for space-constrained designs. Consider the mixed technology termination if standard soldering processes are insufficient for the specific PCB material or thermal profile. Ensure the 0.100 inch pitch matches the mating socket dimensions and verify that the square post contact system meets the mechanical retention needs of the application.

Headers, Male Pins Part Context

This part belongs to the TSM series of surface mount terminal strips. The series provides various row counts, orientations, and termination styles. The TSM-104-01-LM-DV-A-P specifically denotes a double-row, four-position variant with mixed technology pins and vertical orientation, designed for reliable surface mounting in demanding electronic assemblies.

Headers, Male Pins Replacement Considerations

Direct substitutes include other TSM series variants with identical pitch and row count but different termination or orientation suffixes, such as TSM-104-01-L-SV-P-TR for single-sided vertical surface mount. Verify mechanical footprint compatibility before substitution.
