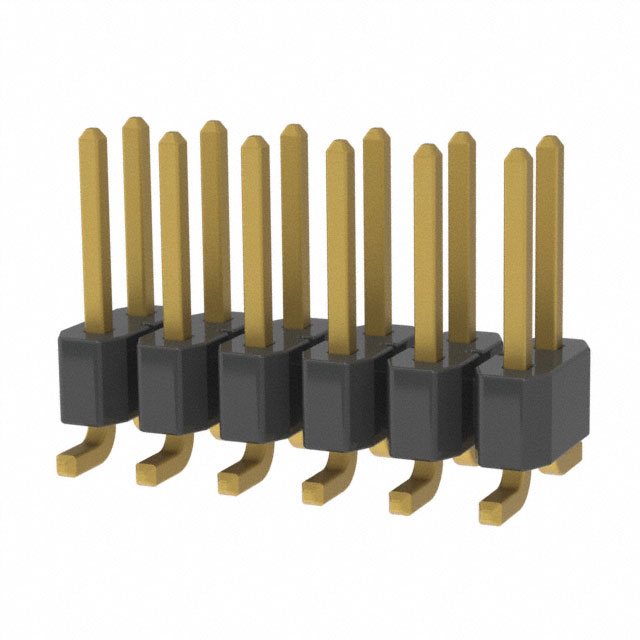

TSM-106-01-H-DV

$3.18

Description：CONN HEADER SMD 12POS 2.54MM
Series：TSM
Mfr：Samtec Inc.
Package：Tube

SKU:982be0658d5c Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TSM-106-01-H-DV is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HEADER SMD 12POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for TSM-106-01-H-DV

Description：CONN HEADER SMD 12POS 2.54MM
Series：TSM
Mfr：Samtec Inc.
Package：Tube
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：12
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.230" (5.84mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：30.0µin (0.76µm)
Contact Finish - Post：Gold
Contact Material：Phosphor Bronze
Insulation Material：Liquid Crystal Polymer (LCP)
Features：-
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：-

Headers, Male Pins datasheet and documents for TSM-106-01-H-DV

TSM-106-01-H-DV

Headers, Male Pins Overview

The TSM-106-01-H-DV is a surface mount terminal strip from the Samtec TSM series. It features a 12-position, 2-row configuration with a 0.100 inch (2.54 mm) pitch. The connector utilizes male pin contacts made of phosphor bronze with gold plating for mating surfaces and matte tin for termination. Designed for board-to-board or cable applications, it operates within a temperature range of -55°C to +125°C. The housing is constructed from black liquid crystal polymer (LCP) rated UL 94 V-0.

Headers, Male Pins Feature Summary

Flexible stacking design allows for variable tail lengths and shrouded configurations.
Surface mount installation supports automated pick-and-place assembly processes.
Gold-plated contact surfaces ensure reliable electrical performance in mating cycles.

Headers, Male Pins Applications

Board-to-board interconnections
Cable-to-board connections
High-density electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix requirements against your design needs. Confirm that the unshrouded header variant matches your PCB footprint and mating partner constraints. Ensure compliance with RoHS3 standards and moisture sensitivity level classifications before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when flexible stacking height options are required for surface mount applications. The TSM series accommodates various tail lengths to suit different board thicknesses. Consider the unshrouded design for space-constrained layouts where side clearance is available.

Headers, Male Pins Part Context

This part belongs to the TSM series of flexible stacking solutions by Samtec. These headers offer customizable tail lengths and shrouding options. The series supports both standard and high-temperature environments, providing versatile interconnect capabilities for modern electronics manufacturing.
