TSM-111-02-L-DH-SL-K-TR

Headers, Male Pins Overview

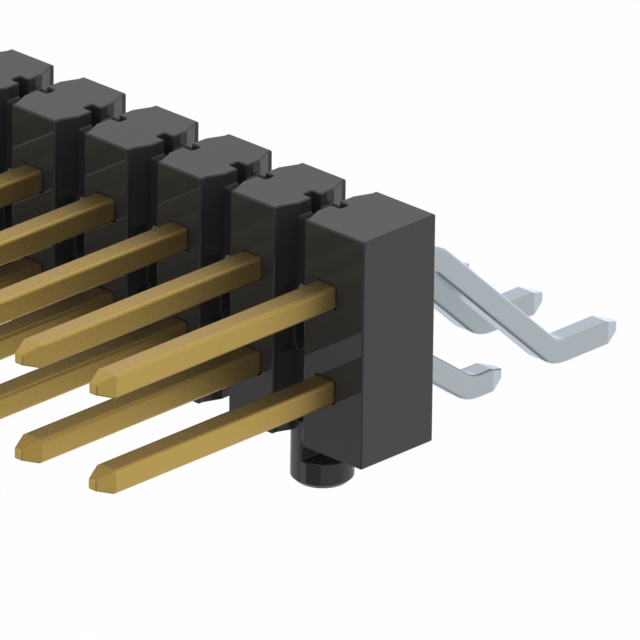

The TSM-111-02-L-DH-SL-K-TR is a surface mount header strip manufactured by Samtec Inc. It features 22 positions arranged in two rows with a 2.54 mm (0.100 inch) pitch. The connector utilizes .025 inch square post terminals with gold plating and is designed for right-angle installation. Packaged in tape and reel format, this component supports board-to-board or cable applications and operates within a temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

• Features .025 inch square post terminals for high mating cycle durability
• Designed specifically for surface mount processing with mixed technology options
• Provides solutions to mate with various socket types through standard post heights

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• High-reliability electronic assemblies requiring extended life performance

Headers, Male Pins Procurement Notes

Verify the specific suffix configuration against official Samtec documentation to ensure correct packaging and terminal specifications. Confirm that the tape and reel variant matches your automated assembly requirements. Cross-reference the part number with the latest catalog to validate active status and RoHS compliance before finalizing procurement plans.

Headers, Male Pins Selection Notes

Select this component when surface mount implementation is required for rigid board stacking or cable attachment. The right-angle design facilitates compact vertical integration. Ensure the mating interface accommodates the .025 inch square post geometry. Consider thermal management capabilities given the specified operating temperature range for harsh environments.

Headers, Male Pins Part Context

This part belongs to the TSM series of surface mount terminal strips from Samtec. The series offers single, double, and triple row configurations with straight or right-angle pins. These connectors are classified as Extended Life Products, meeting rigorous testing standards for mixed flowing gas corrosion resistance and mechanical endurance.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing footprints and mating connectors before considering alternative sources.
