TSM-112-03-S-SV-P-TR

Headers, Male Pins Overview

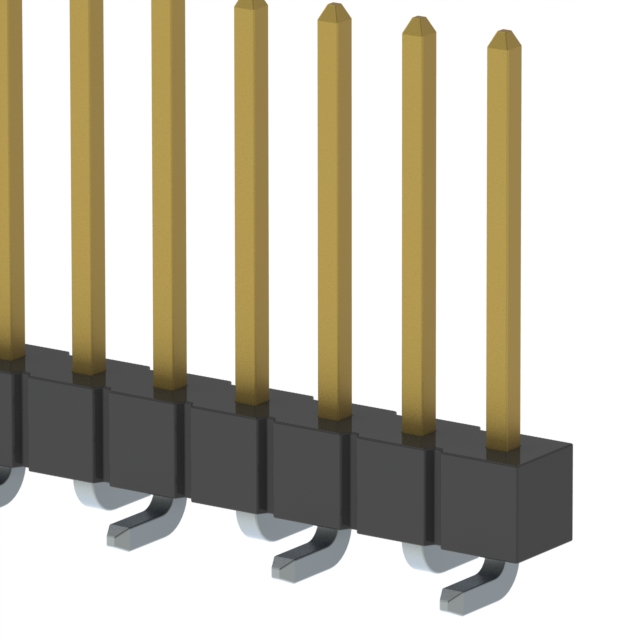

The TSM-112-03-S-SV-P-TR is a surface mount header manufactured by Samtec Inc. It features 12 positions in a single row with a 0.100 inch (2.54 mm) pitch. The connector utilizes square male pins with gold plating over nickel for the mating interface and tin plating on the termination posts. Constructed with liquid crystal polymer insulation, it supports a maximum operating temperature of 125°C and meets UL94 V-0 flammability standards. The component is supplied in tape and reel packaging for automated assembly processes.

Headers, Male Pins Feature Summary

• Surface mount design with mixed technology pin options
• Extended Life Product qualification for high reliability
• Gold-plated mating contacts for corrosion resistance

Headers, Male Pins Applications

• High-speed data transmission systems
• Automotive electronics assemblies
• Industrial control board interconnections

Headers, Male Pins Procurement Notes

Verify that the specific suffix 'S' confirms the use of gold-plated contacts rather than tin or silver alternatives found in other series variants. Ensure the 'SV' designation aligns with the required vertical orientation and post height specifications for the target PCB footprint. Confirm the 'P-TR' packaging matches the automated pick-and-place equipment requirements to prevent handling damage during installation.

Headers, Male Pins Selection Notes

Select this variant when gold contact plating is required for superior conductivity and oxidation resistance compared to standard tin versions. The 12-position configuration fits applications requiring moderate density without excessive board space consumption. Verify that the single-row layout accommodates the available trace routing area on the host circuit board while maintaining adequate clearance from adjacent components.

Headers, Male Pins Part Context

This component belongs to the TSM series of .100 inch surface mount terminal strips. The series offers various row counts and termination styles to support diverse board-to-board and cable connections. The TSM-112-03-S-SV-P-TR specifically addresses needs for reliable, high-cycle interconnects in environments demanding extended operational life and robust signal integrity.

Headers, Male Pins Replacement Considerations

Direct substitutes include TSM-112-03-L-SV-P-TR for tin-plated contacts or TSM-112-03-F-SV-P-TR for flexible tail options. Verify that any replacement maintains the same 12-position count and 2.54mm pitch to ensure mechanical compatibility with existing footprints.
